Note: This motherboard has been used, we will test 100% before Shipping ，Have 90% New

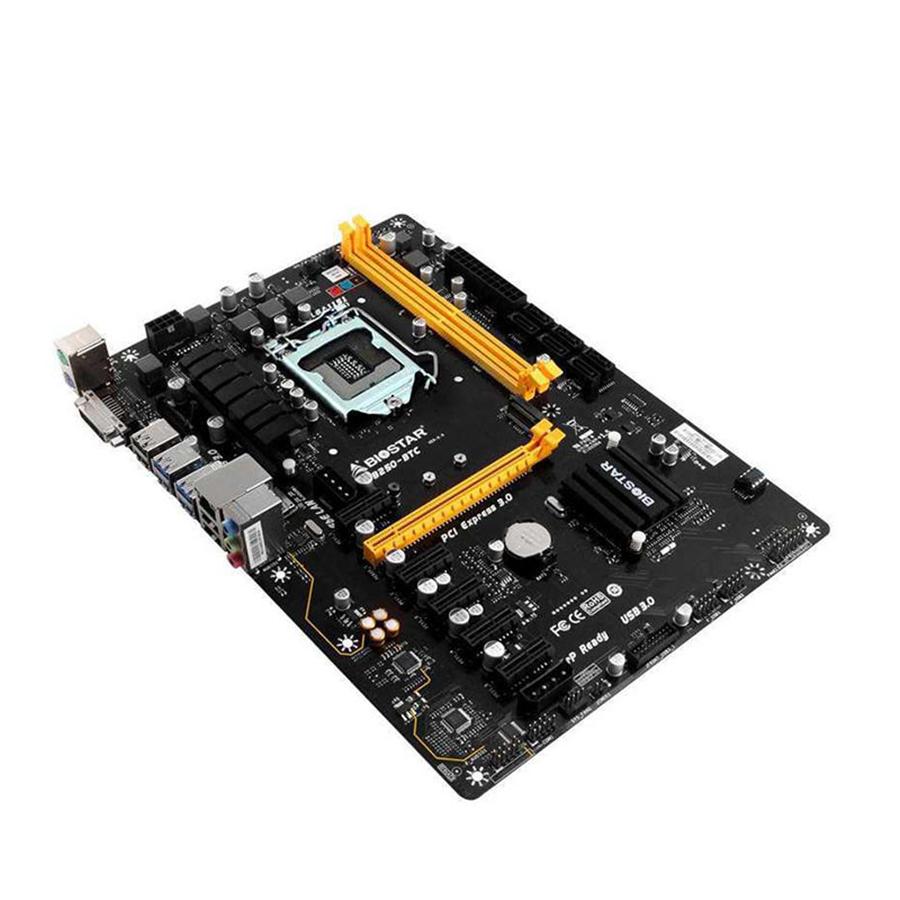

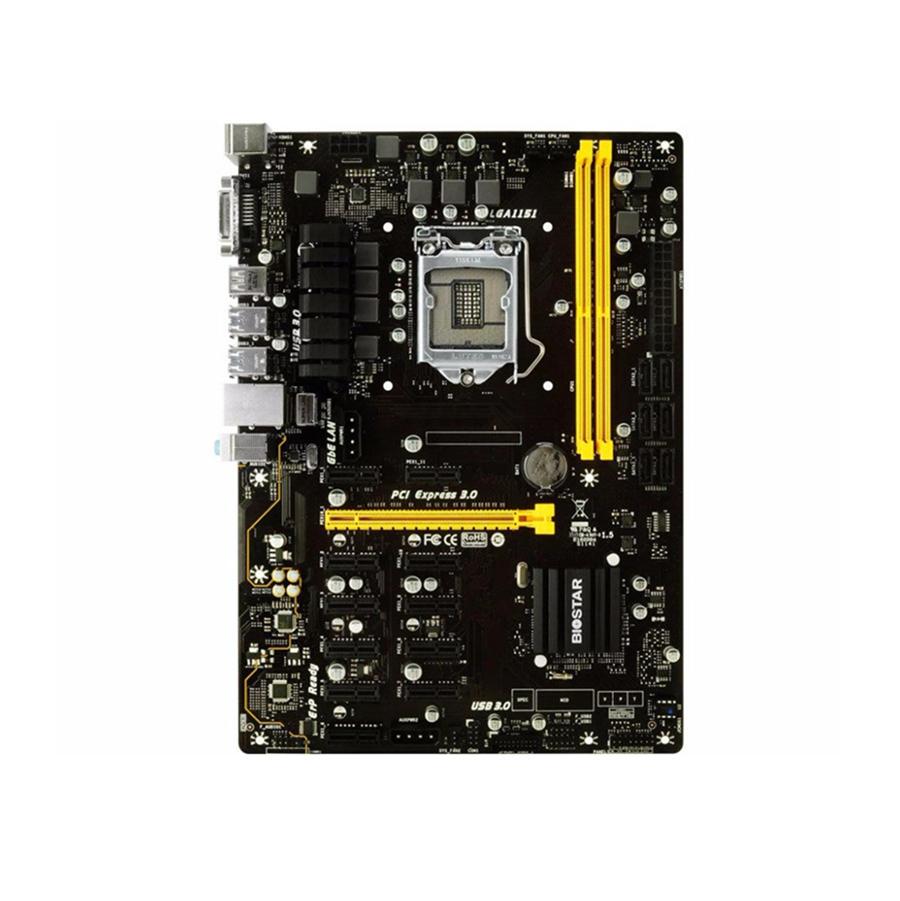

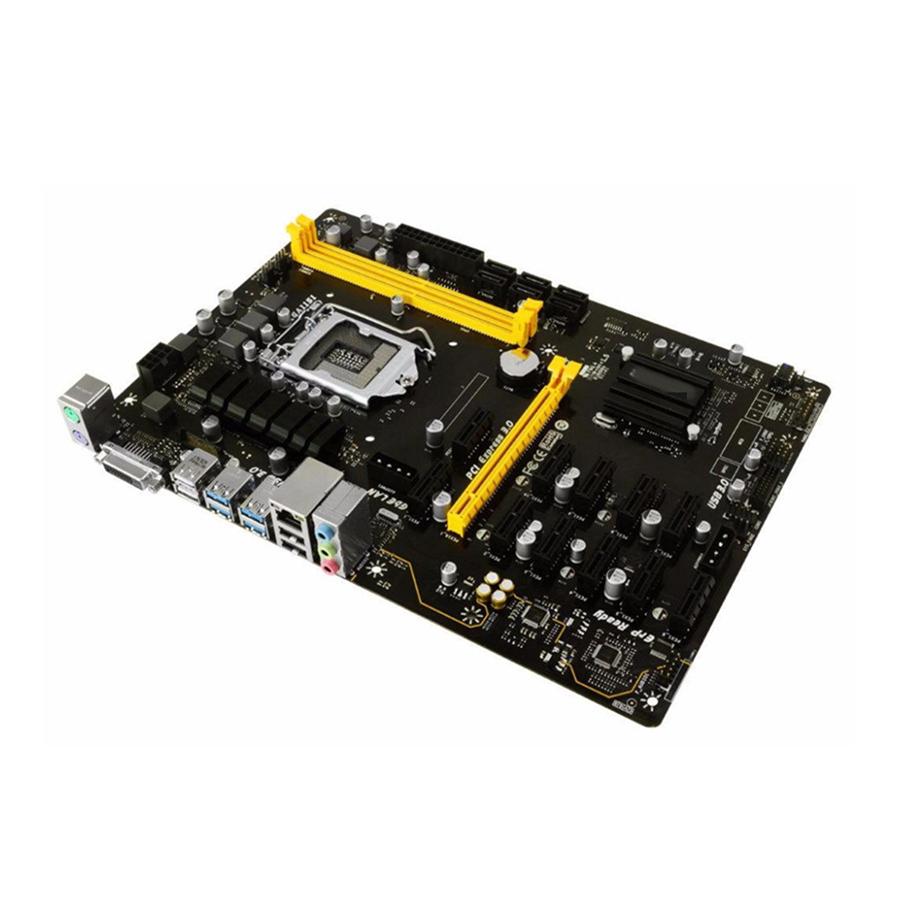

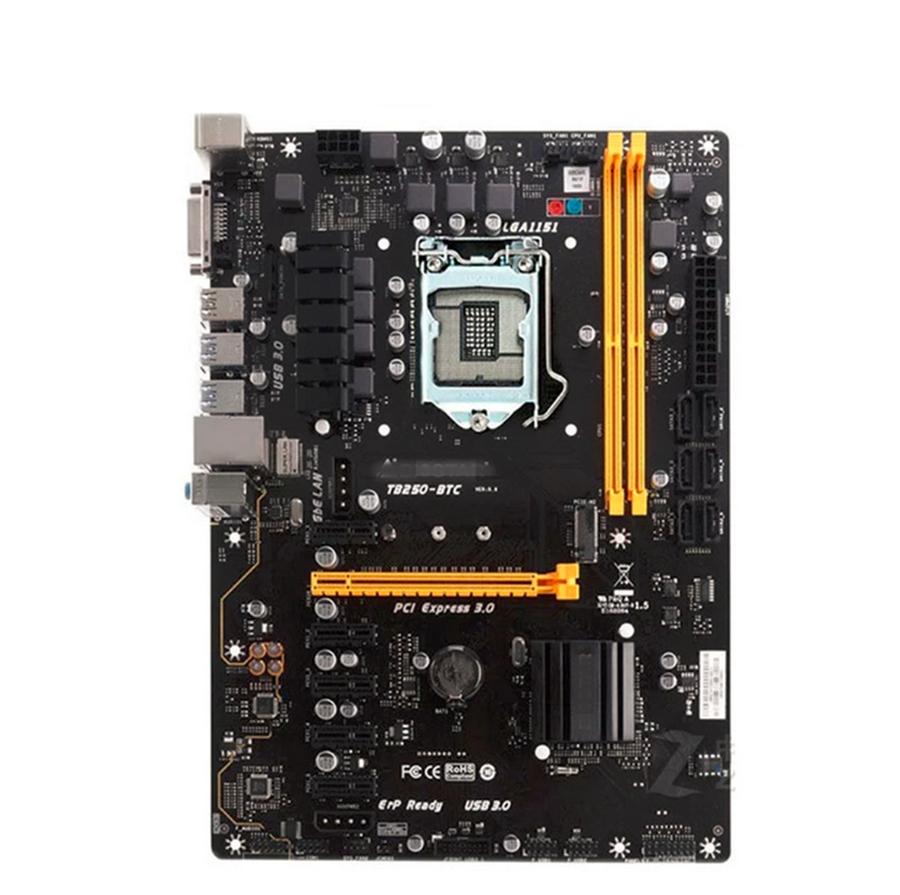

For BIOSTARTB250-BTC parameters
Main chipset: Intel B250
Audio chip: integrated Realtek ALC887 8 channel
Memory type: 2 × DDR4 DIMM
Maximum memory capacity: 32GB
Motherboard type: ATX board type
Dimensions: 29.5 × 21.0cm
Power socket: one 8-pin, one 24-pin power supply
Integrated chip graphics / sound card / network card
Main chipset Intel B250
Chipset description with Intel B250 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated Realtek ALC887 8-channel audio chip
NIC chip Onboard Realtek RTL8111H Gigabit NIC
Processor specification
CPU type Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1151
CPU Description CPU TDP (Thermal Design Power): 95W
Memory specification
Memory Type 2×DDR4 DIMM
Maximum memory capacity 32GB
Memory Description Supports dual channel DDR4 2400/2133/1866MHz memory
Storage extension
PCI-E standard PCI-E 3.0
PCI-E slot 1 x PCI-E X16 graphics card slot, 5 x PCI-E X1 slot
Storage interface 1×M.2 interface, 6×SATA III interface

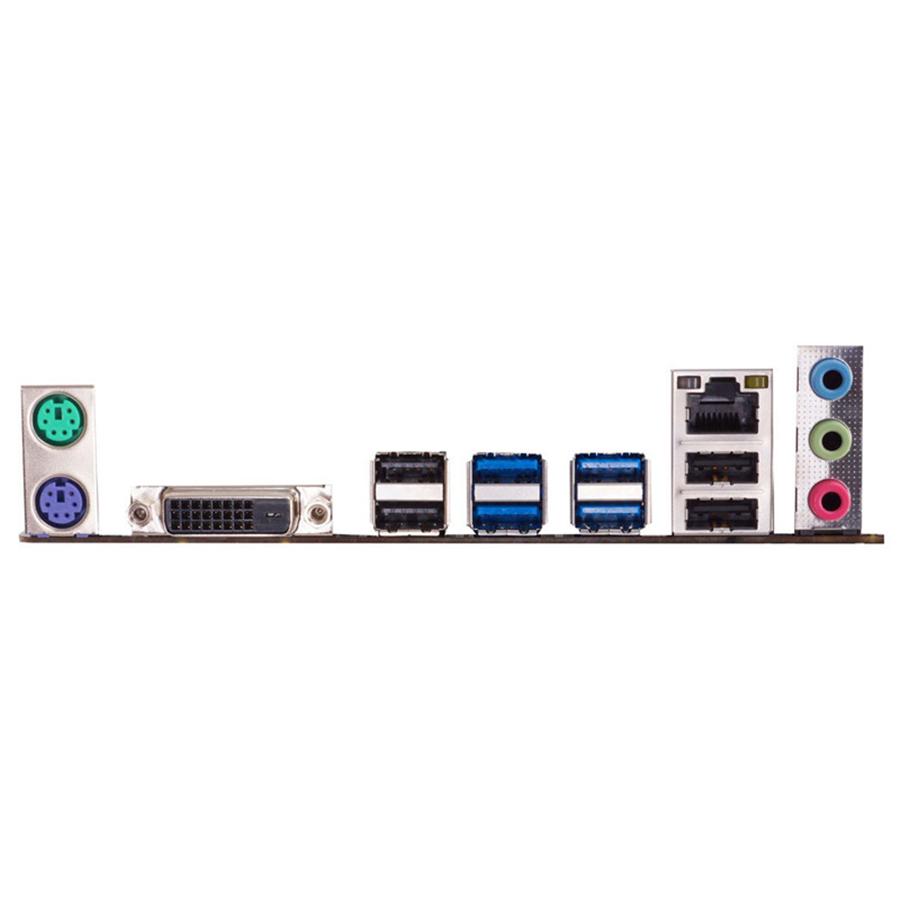

I/O interface
USB interface 5×USB3.0 interface (1 built-in +4 backplane), 6×USB2.0 interface (2 built-in +4 backplane)
Video interface 1×DVI interface
Power connector An 8-pin, 24-pin power connector
Other interfaces 1×RJ45 network interface, 3× audio interface, 1×PS/2 mouse, 1×PS/2 keyboard interface
Plate type
Motherboard type ATX form
Dimensions 29.5×21.0cm
Disassemble motherboard rust scratches and dust is inevitable!hight require buyer please don't pay for it.function 100% tested good.
We clearly state that qtj1 series processors or other processors modified from notebook CPUs or unofficial version CPUs (ES version) are not supported. Forcible use is equivalent to abandoning the warranty.
To ensure the motherboards you bought working stably, pls note the following:
1.Install the Memory,CPU,CD-ROM,HDD,LCD;
2.Boot the system,start load WIN8 system;
3.Check heatsink temperature,run 3Dmark 2003 testing graphic card,5-10 min.testing sound card if have voice.
4.Take testing video and testing pic backup.
5.Reboot system again
