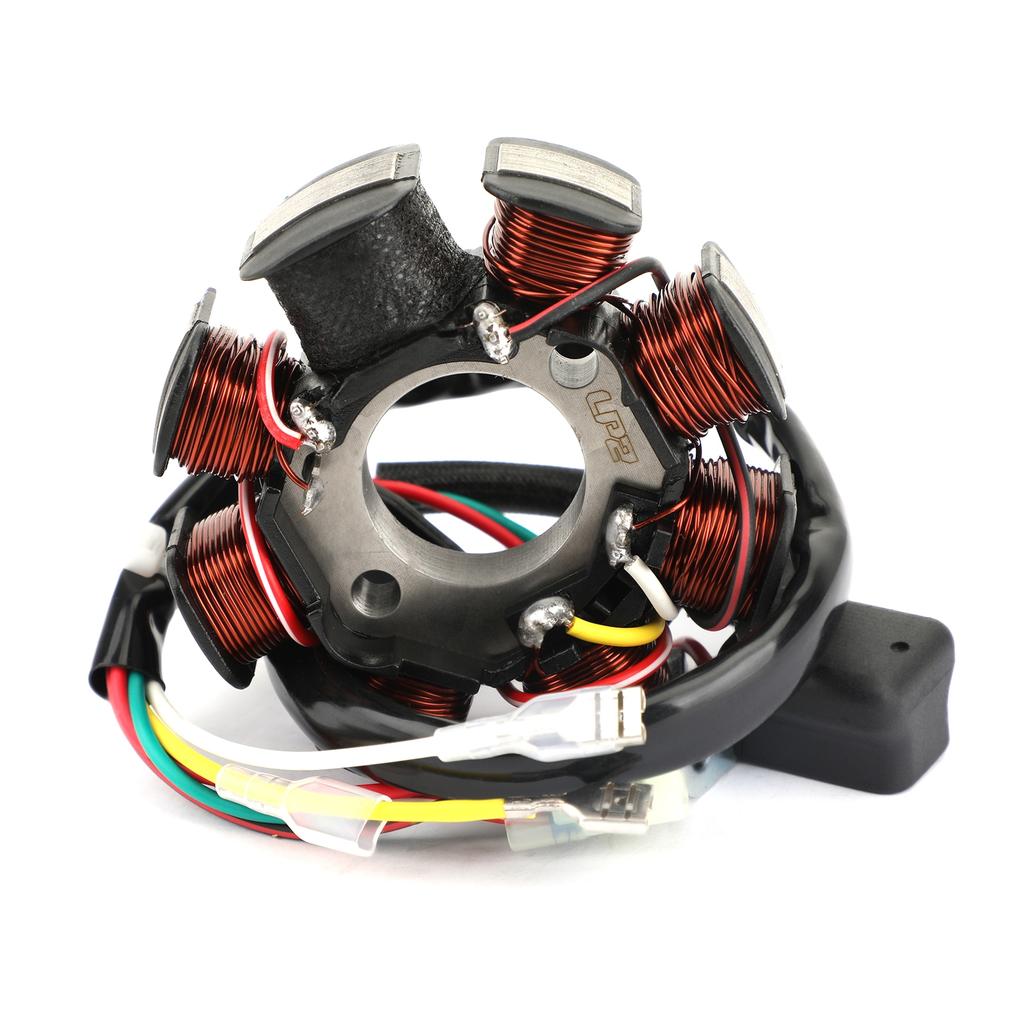

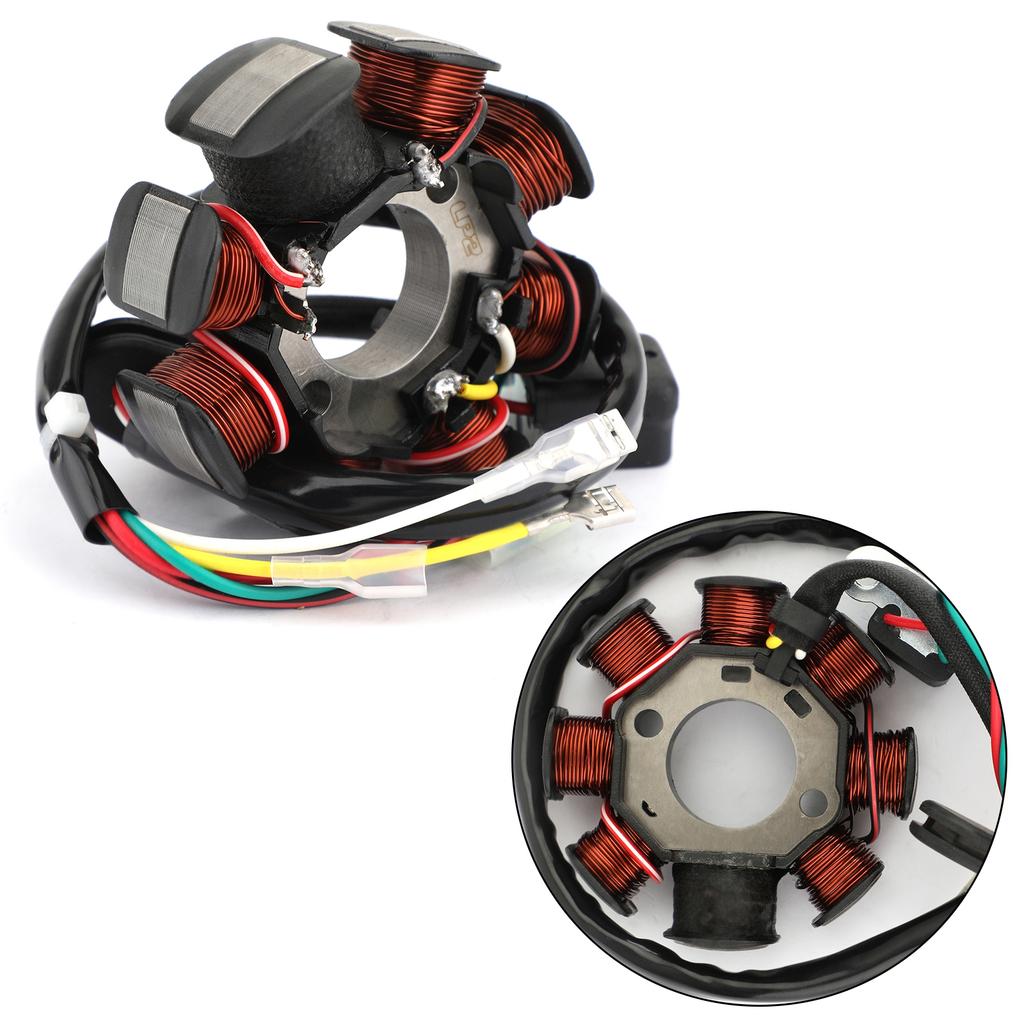

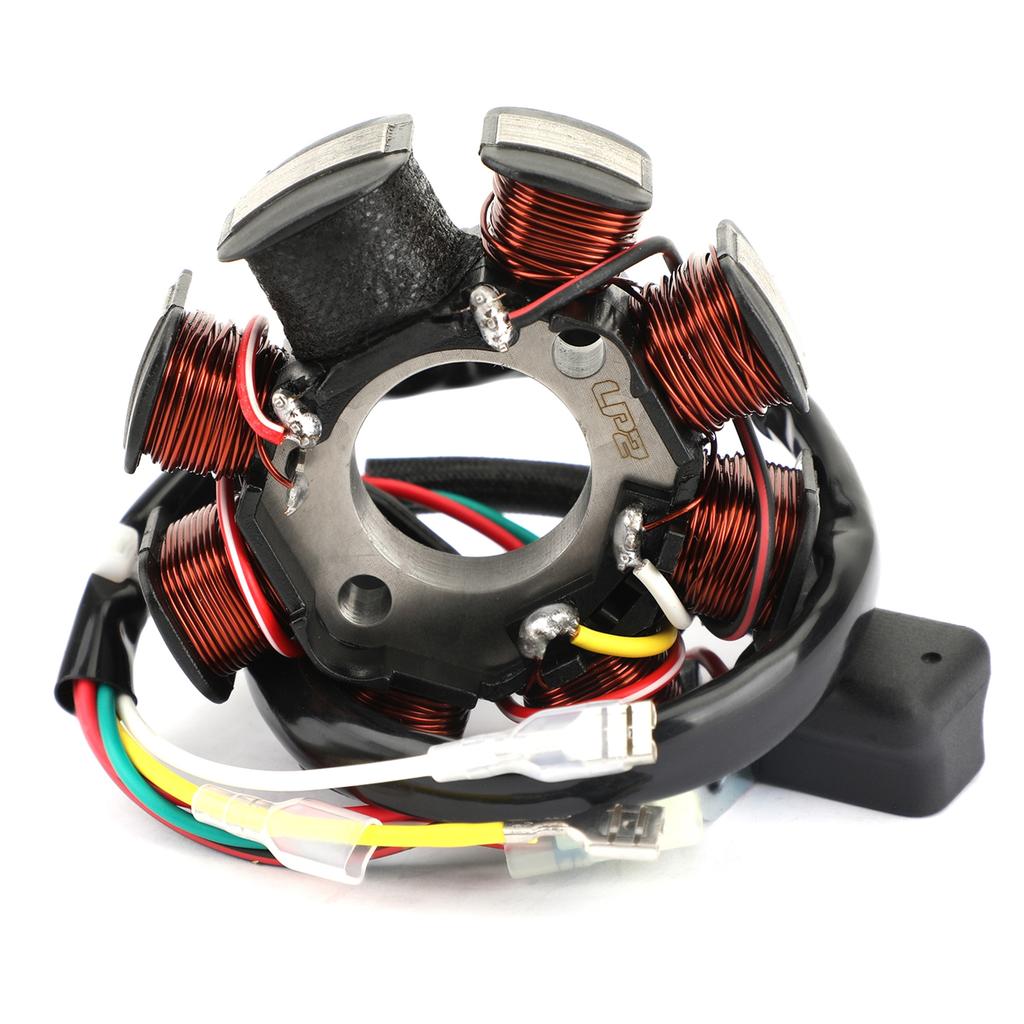

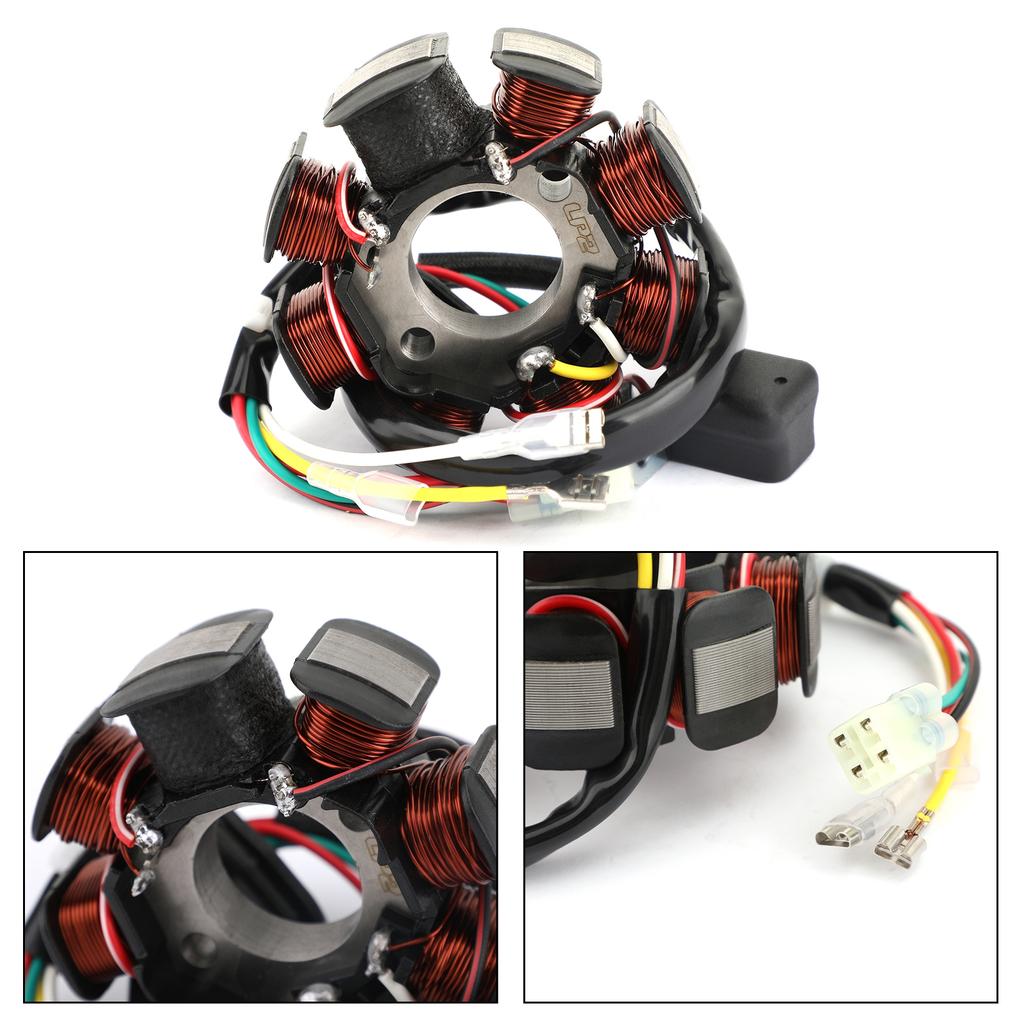

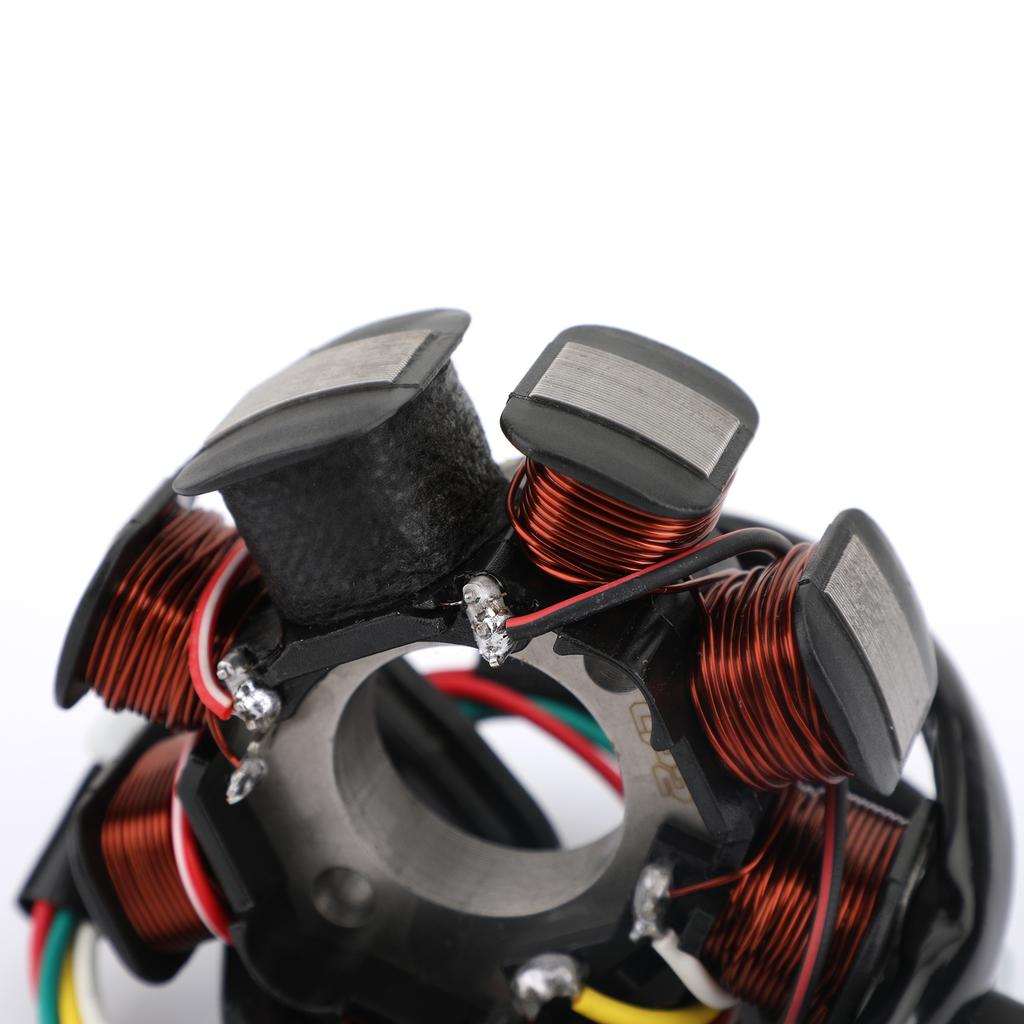

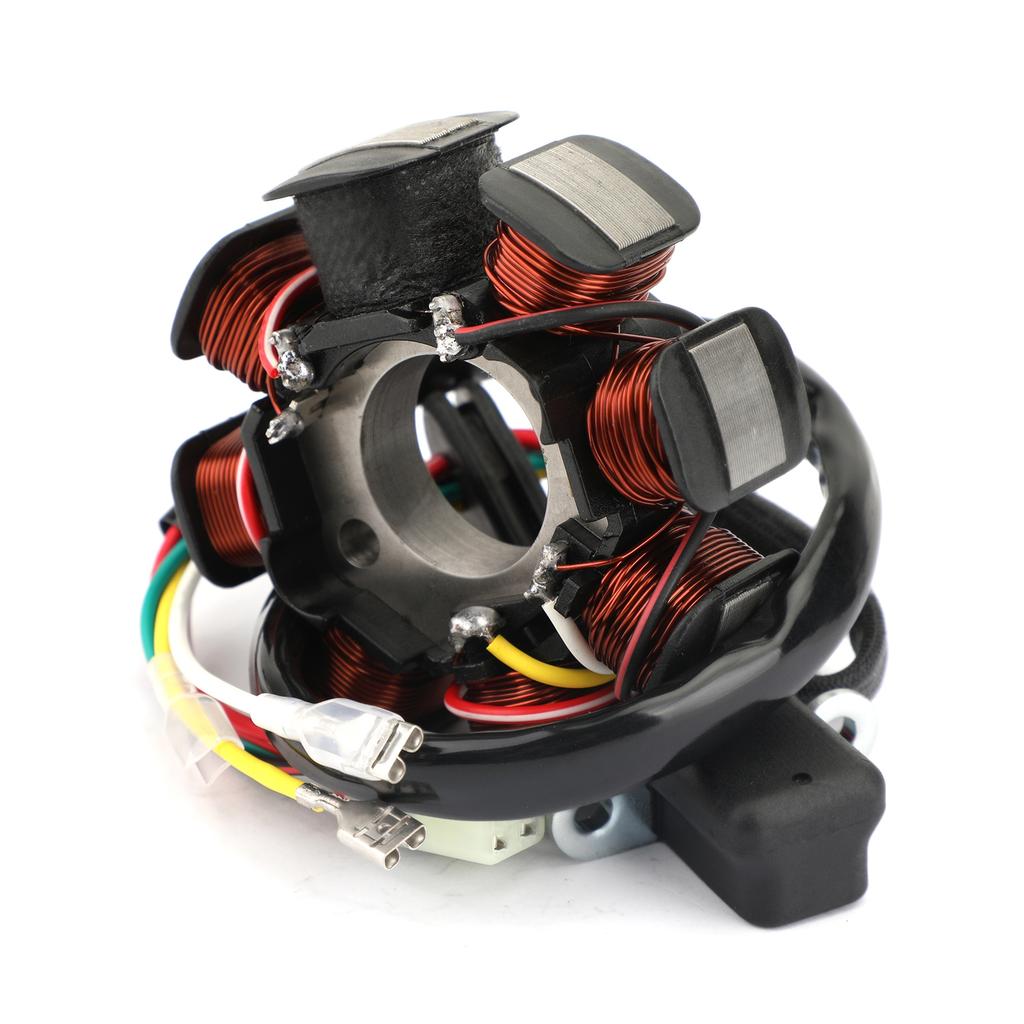

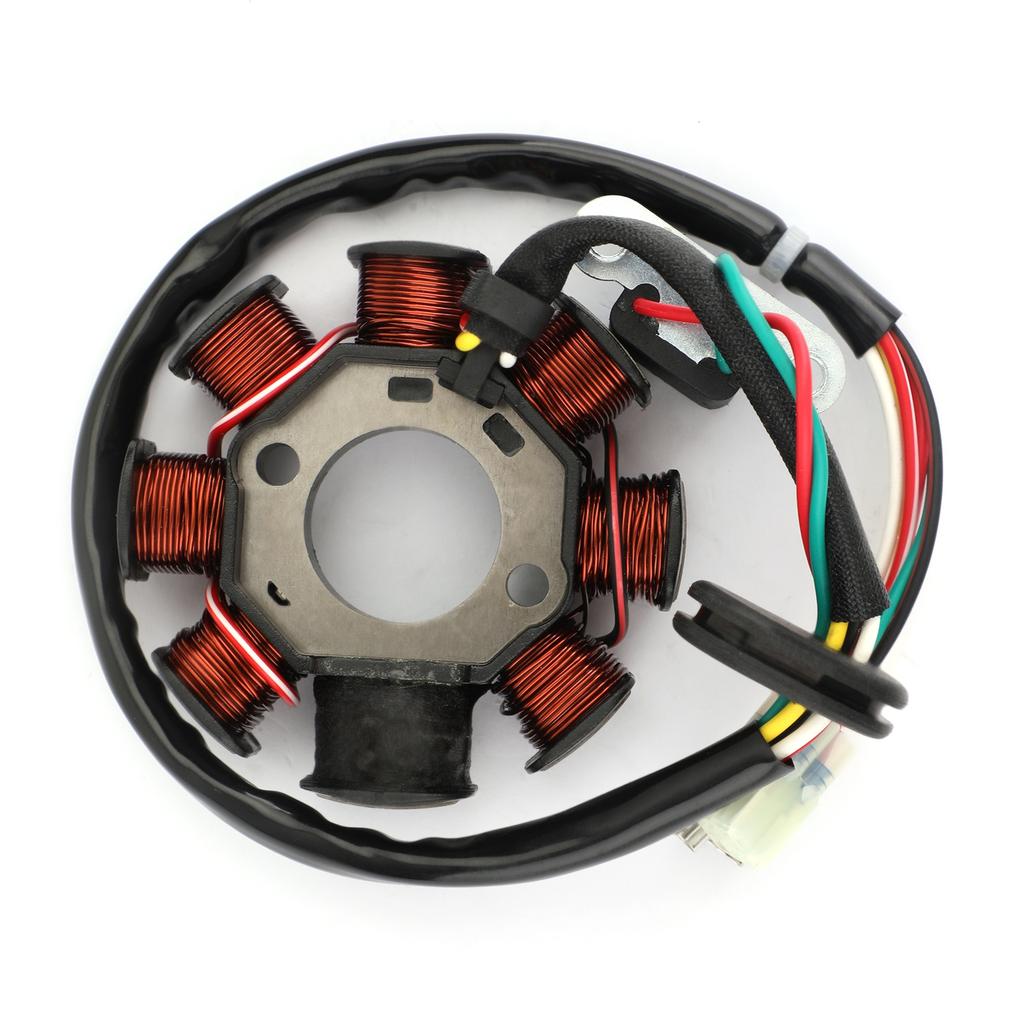

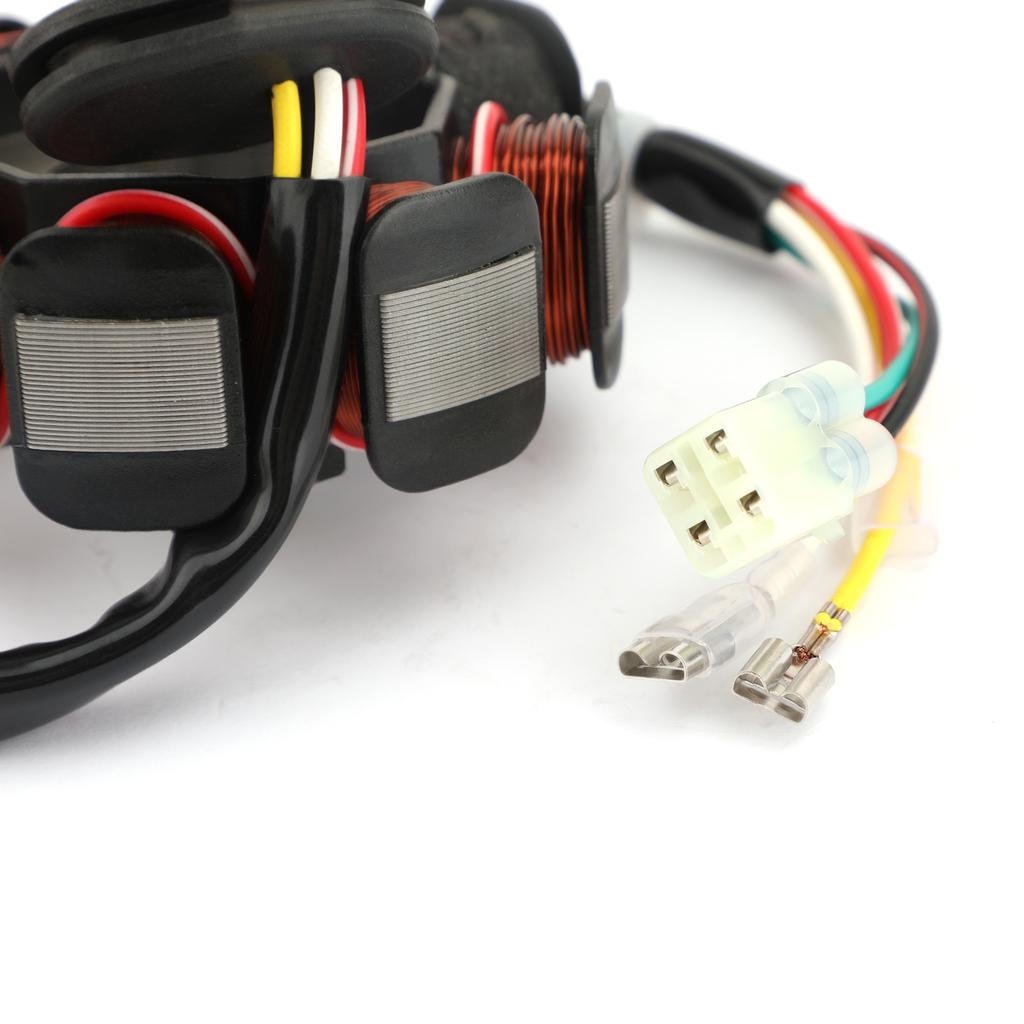

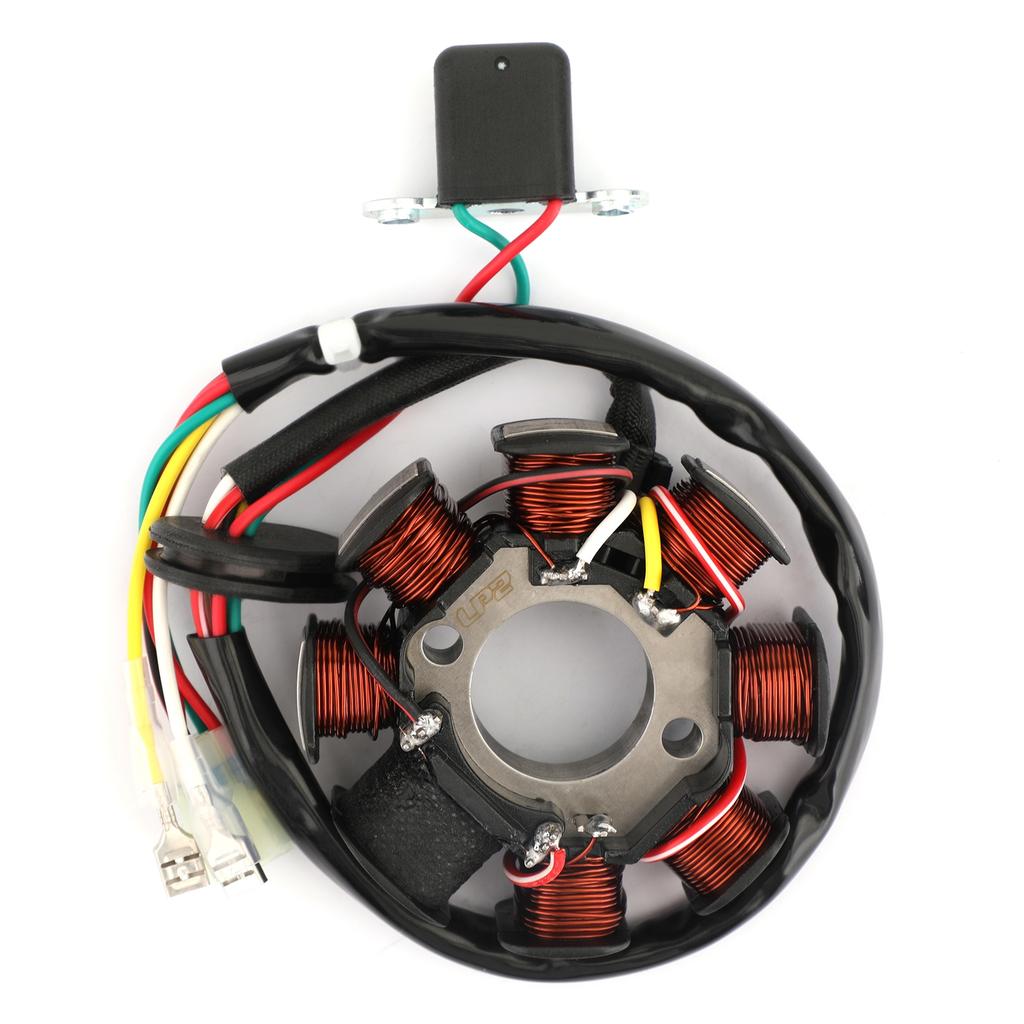

Magneto Generator Engine Stator Fit For 125 200 250 300 XC XCW EXC 55139004000 55139004100
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

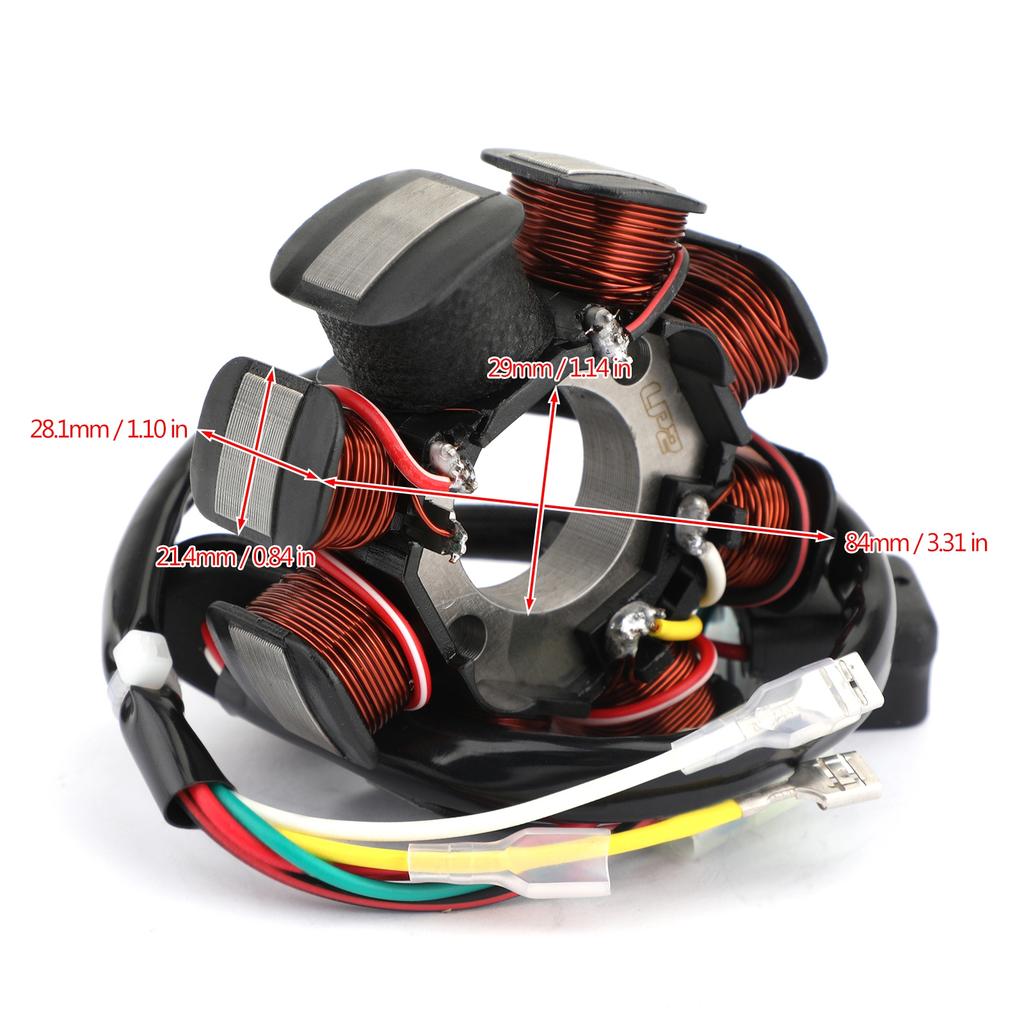

Dimensions :
Interior diameter : 29mm / 1.14 inches
Exterior diameter : 84mm / 3.31 inches
Pole's Thickness : 28.1mm / 1.10 inches
Pole's Width : 21.4mm / 0.84 inches
Other specifications :
Number of wires: 6
Number of pins: 6
Number of plugs: 3
Number of fixation holes: 2
Number of poles: 8
PART NUMBER(S):
55139004000
55139004100
FITMENT:
Fits 125 XCW 2017-2018
Fits 150 XCW 2017-2019
Fits 200 XCW 2008-2016
Fits 200 EXC 2013-2016
Fits 250 XC 2008-2016
Fits 250 XCW 2008-2016
Fits 250 XC USA AND EU MIX 2008-2016
Fits 250R Freeride 2014-2017
Fits 250 EXC 2008-2016
Fits 250 EXC SIX DAYS 2008-2016
Fits 250 EXC FACTORY 2011/2015
Fits 250 EXC FACTORY EDITION 2011/2015
Fits 300 2009-2016
Fits 300 XC 2008-2016
Fits 300 XCW 2008-2016
Fits 300 XCW SIX DAYS 2014-2016
Fits 300 EXC-E 2007-2008
Fits 300 EXC-E SIX DAYS 2008/2010-2011
Fits 300 EXC 2009-2016
Fits 300 EXC SIX DAYS 2009/2012-2016
Fits 300 EXC FACTORY EDITION 2011/2015
Fits Husqvarna TC 250 2014
Fits Husqvarna TX125 2017-2018
Fits Husqvarna TE150 2017-2018
Fits Husqvarna TE250 2011-2016
Fits Husqvarna TE300 2011-2016
Fits Husaberg TE250 2011-2013
Fits Husaberg TE300 2012-2013
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
