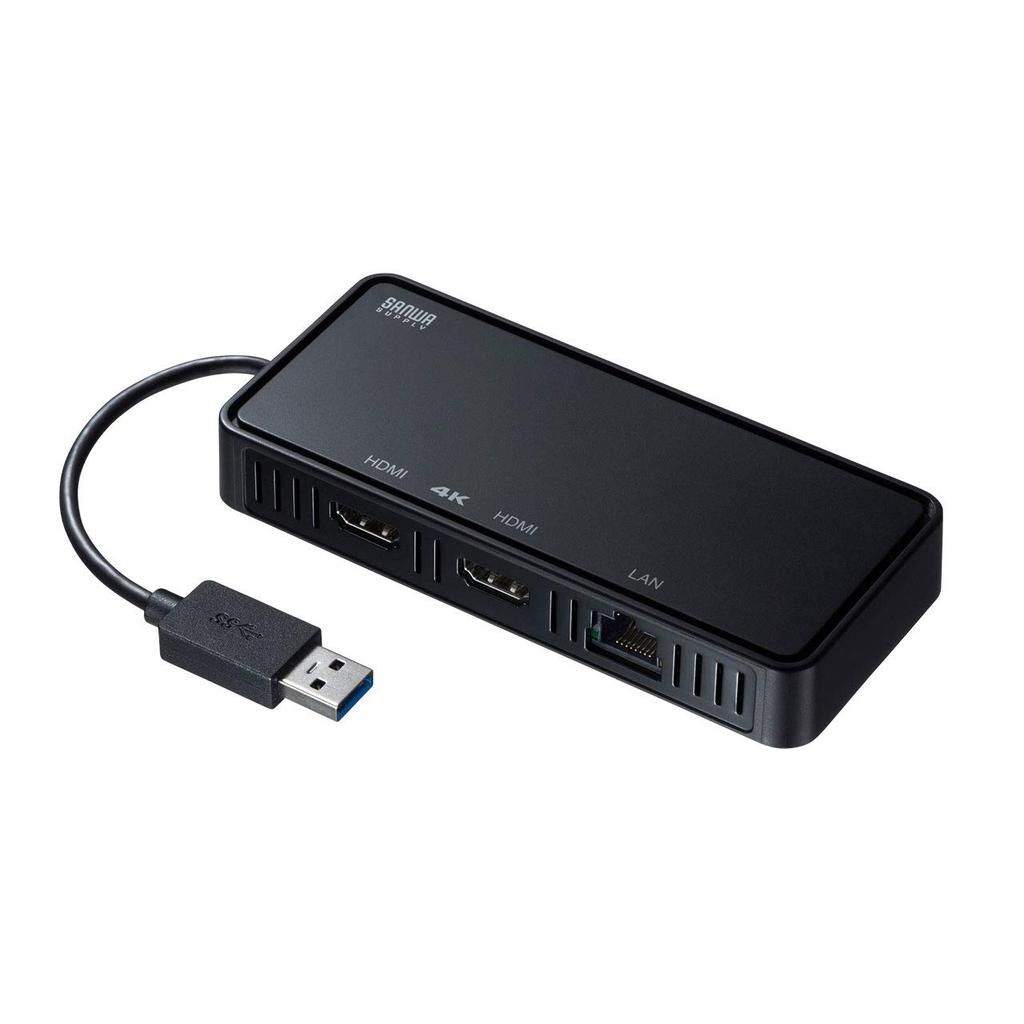

SANWA SUPPLY USB 3.1 To HDMI Display Adapter (4K Support, Dual Outputs, with LAN Port) USB-CVU3HD3

This all-in-one cable eliminates the need for a separate USB cable.

Its compact size makes it easy to carry.

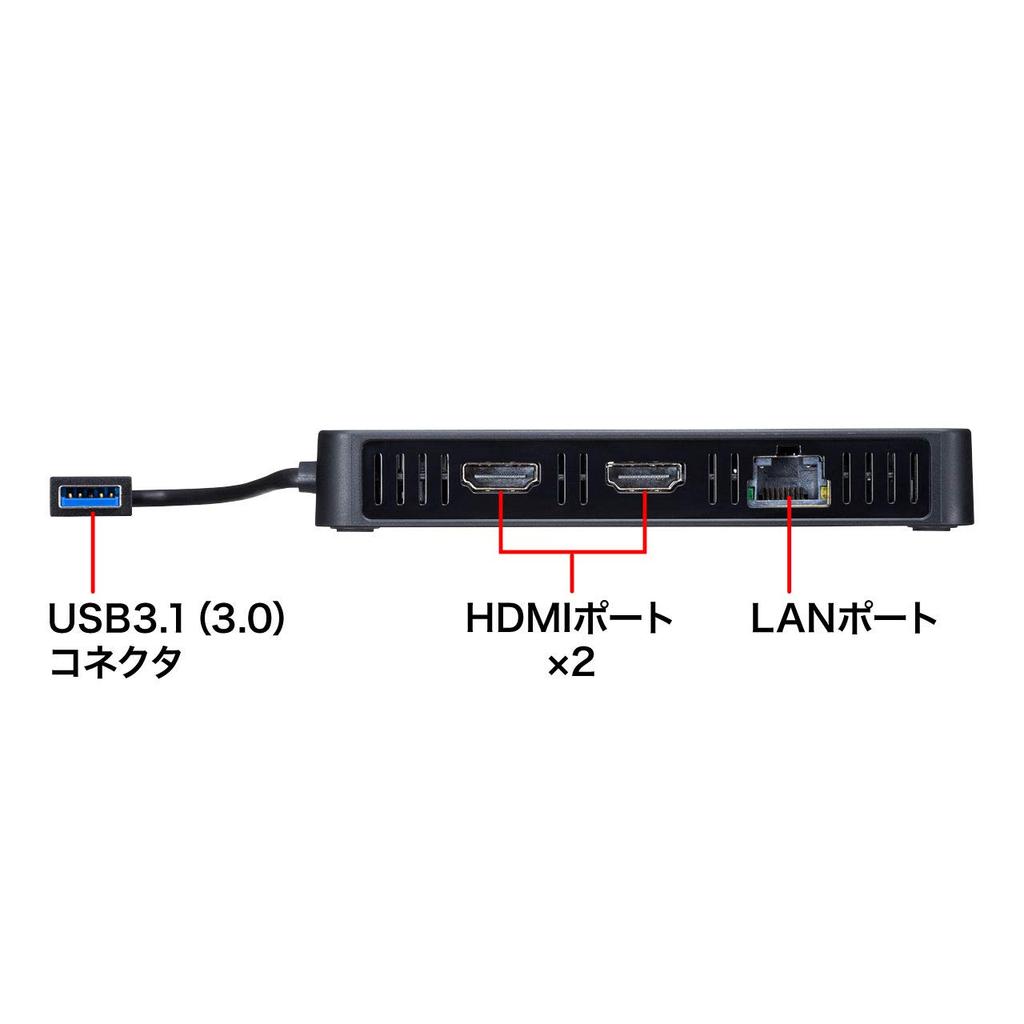

<Common Specifications> ■Interface Standard: USB Specification Ver. 3.1 Gen 1 (USB 3.0) compliant (backward compatible with USB Ver. 2.0/1.1) ■Communication Speed: 5 Gbps/480 Mbps/12 Mbps/1.5 Mbps (theoretical values) ■Connector: USB 3.1 Gen 1 (USB 3.0) A connector 1 x Male, 2 x HDMI Type A (19-pin) Female 1 x RJ45 Port ■Power Supply: Bus Powered ■Power Consumption: Approx. 800mA (Maximum) ■Maximum Number of Devices Connected: 6 ■Operating Temperature Range: 10°C - 40°C ■Operating Humidity Range: 0% - 80% ■Dimensions: W131.3 x D58.3 x H19.4mm ■Weight: Approx. 130g ■Cable Length: Approx. 9cm ■Accessories: Driver CD, Instruction Manual, Warranty Card <Video Output> ■Connector: 2 x HDMI Type A (19-pin) Female ■Supported Resolution: 3840 x 2160 (6 0/30Hz), 3440×1440 (60/30Hz), 2048×1152 (60Hz), 2048×1080 (60Hz), 1920×1200 (60Hz), 1920×1080 (50/60Hz) 1680×1050 (60Hz), 1600×1200 (60Hz), 1600×900 (60Hz) 1440 x 900 (60Hz), 1400 x 1050 (60/75/85Hz), 1368 x 768 (60Hz), 1366 x 768 (60Hz), 1360 x 768 (60Hz) 1280×10 24 (60/75Hz), 1280x960 (60/85Hz), 1280x800 (60Hz), 1280x768 (60/75/85Hz), 1280x720 (50/60Hz), 1024x768 (60/70/75/85Hz), 800x600 (56/60/72/75/85Hz), 640x480 (60/67/72/75/85Hz) ■Dual Display Output: Supported <LAN Port> ■Interface Standard: IEEE802.3 (10BASE-T Ethernet) IEEE802.3u (100BASE-TX Fast Ethernet) IEEE802.3ab (1000BASE-T) ■Communication Mode: Full Duplex/Half Duplex ■Access Method: CSMA/CD ■Port Configuration: RJ-45 Port (1000BASE-T/100BASE-TX/10BASE-T) Auto-MDIX, AutoNegotiation Supported ■Power Supply Voltage: 5V *1000BASE-T communication speed is supported only when connected via USB 3.1 (3.0). <Restrictions> *This product must be connected directly to a computer's USB port. It cannot be used with a USB hub or additional USB port. *This product cannot play or output copyright-protected video (such as Blu-ray movies). *APIs such as DirectX and OpenGL are not supported. *Video playback in clone mode (mirror mode) is not supported. *This product is generally plug-and-play compatible when disconnecting and connecting. However, in rare cases, it may not display or function properly due to a timing error in USB recognition. Please try disconnecting and reconnecting. This is not a malfunction or defect of the product. *This product is designed to be used while Windows OS/macOS is running. It does not function during system startup or at the BIOS screen. (No display) *When connecting a USB device to the product's USB hub port, the screen may momentarily disappear; this is a product specification. *This product converts and outputs video signals from the USB port, so it is highly dependent on the performance of your computer. Be sure to use it with a computer that meets or exceeds the specifications of the supported models. Games and video playback that require rapid screen changes are not recommended as they may cause frame drops. *Even with a compatible model, connected devices, and environment, it may not function properly. This USB 3.1 to HDMI + LAN conversion adapter converts a USB port into two 4K-compatible HDMI outputs and a gigabit-compatible LAN port. Each port supports output of up to 4K/3840x2160 (60Hz), allowing you to output high-definition 4K resolution directly to 4K-compatible large-screen TVs and projectors. This product can output 4K even from laptops that do not have an HDMI port or computers that do not support 4K output. It is USB 3.2 Gen 1 (USB 3.1/USB 3.0) compatible and supports Gigabit (1000BASE-T) communication. High-speed network communication is possible even on computers that do not have a wired LAN port.
