Heian Shindo Kogyo LABRICO DIY Storage Parts 2x4 Adjuster, Heavy-Duty Type, Bronze, Maximum Load Capacity 40kg, EXB-1

Product Dimensions Width 9.7cm x Depth 7cm x Height (Top Cap + Top Cap) 13.9-15.9cm (Bottom Cap) 4.2cm

Load Capacity Load capacity varies depending on application. Also, values are experimental. Conditions vary depending on the installation location and the wood used, so it is not guaranteed.

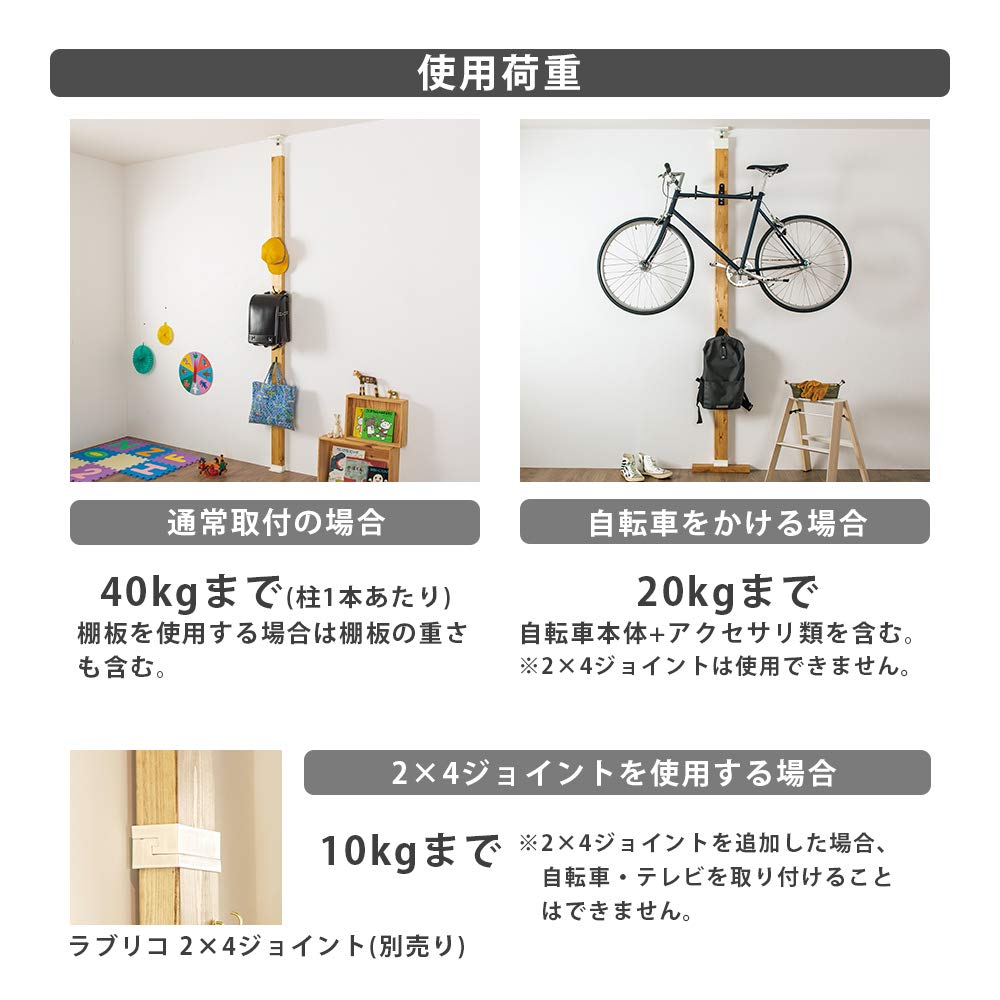

- When loading a single column, do not exceed 40kg. To avoid tipping, do so. (This includes the weight of the shelf and shelf brackets when using shelves.)

- When using Labrico shelf brackets and placing columns on both sides of the shelf, follow the load capacity guidelines for the shelf brackets.

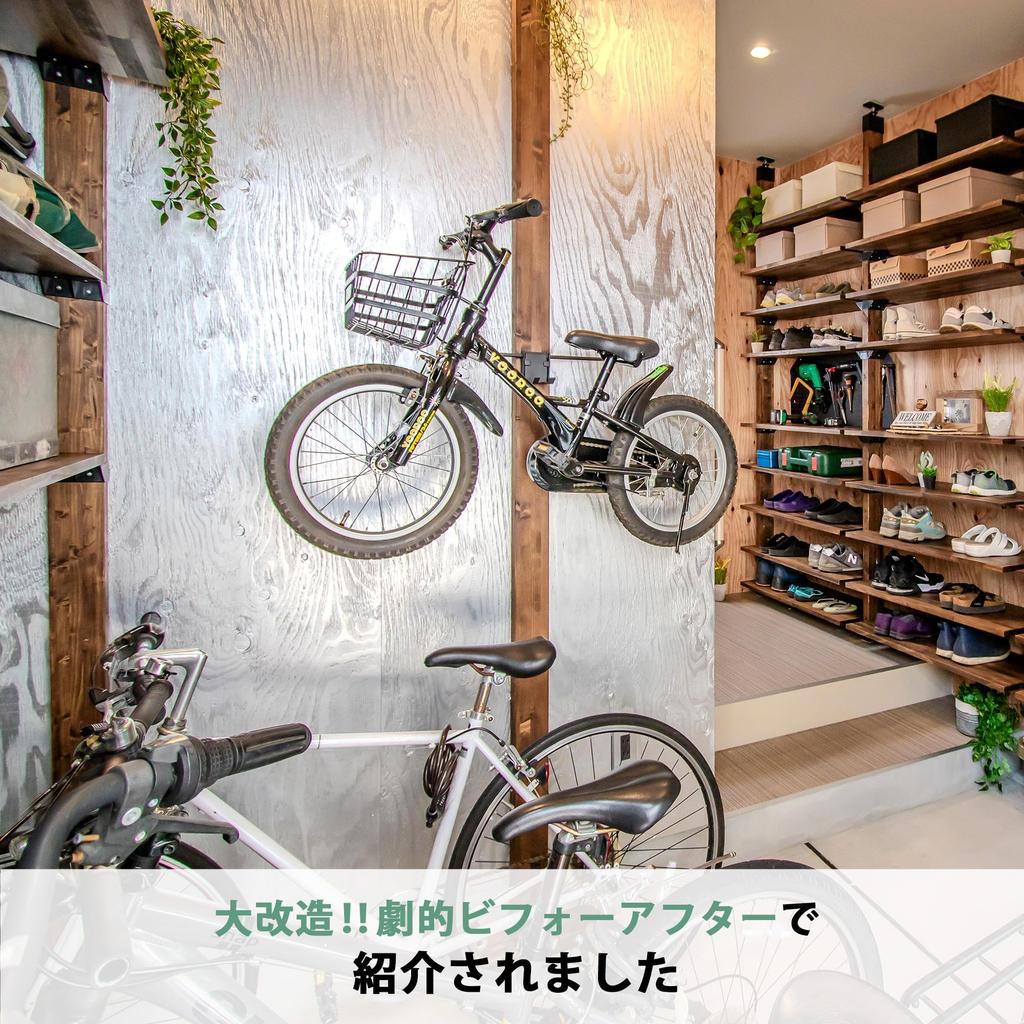

- When hanging bicycles, do not exceed 20kg. (This includes bicycles and accessories.) When using, lift and lower the unit carefully to avoid sudden loads.

- When using Labrico joints, do not exceed 10kg per column.

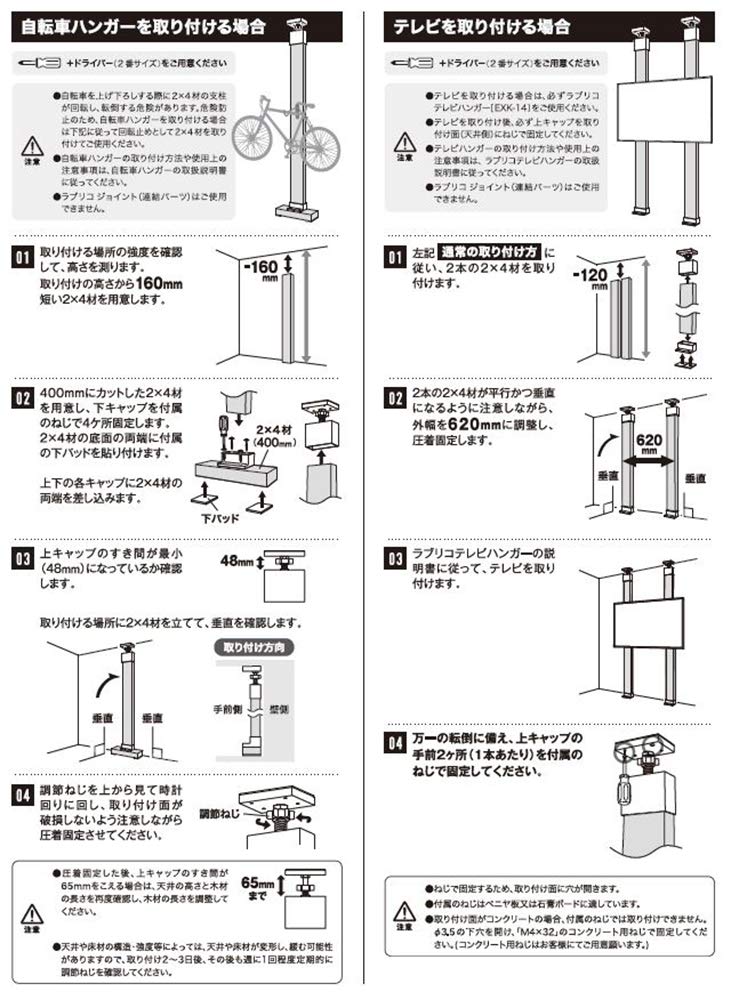

Installation Precautions - This product is for indoor use only. ・If the 2x4 lumber used is warped or bent, it may not be able to be attached or installed properly. ・Install on a sturdy base. Installing on a weak base may cause the product to fall over or damage the mounting surface. ・Cannot be installed on an inclined surface. ・For vertical tensioning only. Do not use horizontally. ・Assembly and installation should be carried out by at least two people. ・Ensure there is sufficient working space when installing. ・Pay close attention to safety and take care to avoid injury during the installation and damage to the room or furniture. ・Do not use in direct sunlight, high temperatures, or high humidity areas such as bathrooms. ・Do not install near doors, in places subject to vibration, or where impacts may be applied. ・Using excessive force may damage the mounting surface or the product. ・The included screws may not be usable depending on the material and strength of the mounting surface. ・When installing a bicycle hanger, attach a separate 2x4 piece of material to the bottom cap to prevent rotation. - Always use the Labrico TV Hanger [EXK-14] when mounting a TV. - When mounting the Labrico TV Hanger [EXK-14], secure the top cap to the mounting surface with screws (two places per pole).

Precautions for Use - Never disassemble or modify the product. - Do not paint the product. - Do not climb or hang from it. - As a precaution, do not place dangerous items, valuables, or items that may be damaged. - If any abnormalities such as damage or cracks occur, discontinue use immediately. - Deodorizers, air fresheners, cosmetics, hair styling products, acidic detergents, alkaline detergents, oils and greases, or organic solvents (benzine, thinner, etc.) may cause deterioration. Remove them immediately. - The mounting surface may discolor or leave marks depending on the material and long-term use. Also, depending on the installation method, screw and staple holes may remain after removal.

・We are not responsible for malfunctions, damage, or accidents caused by force majeure such as natural disasters, deterioration over time, modifications, or improper use.

・Products taken outside of Japan are not covered by warranty.

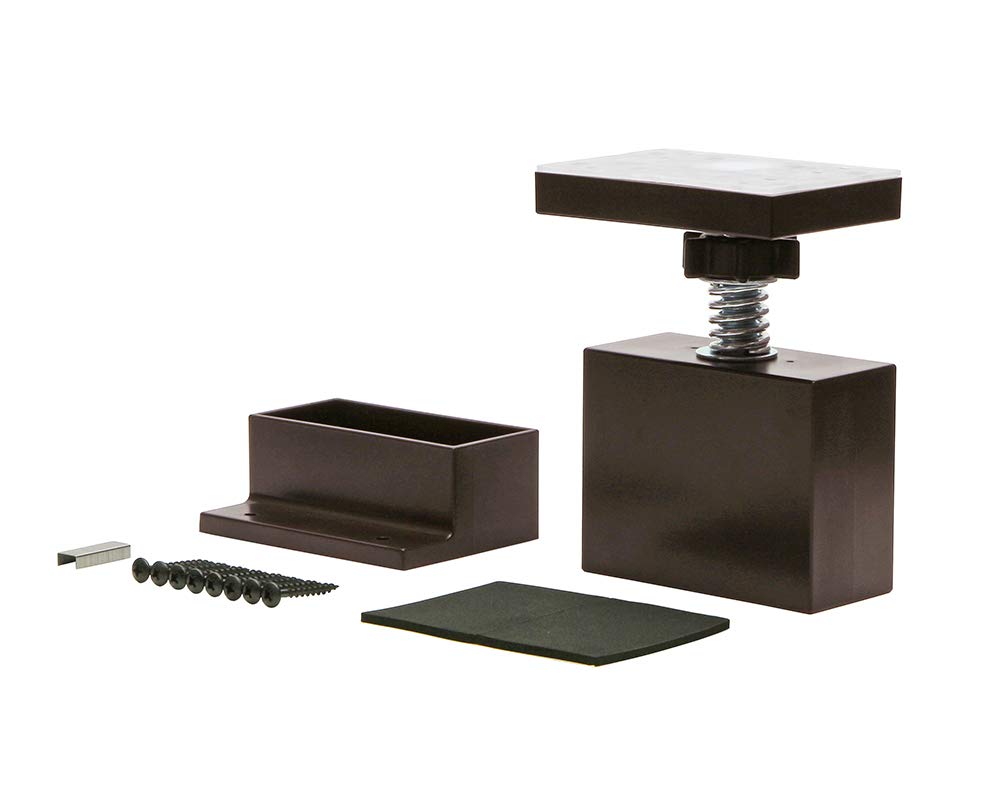

Set Contents: 1 set of adjusters, 2 bottom pads, 8 screws, 1 stapler, instruction manual. Load Capacity: 40 kg per pole (20 kg for bicycles). Color: Bronze.

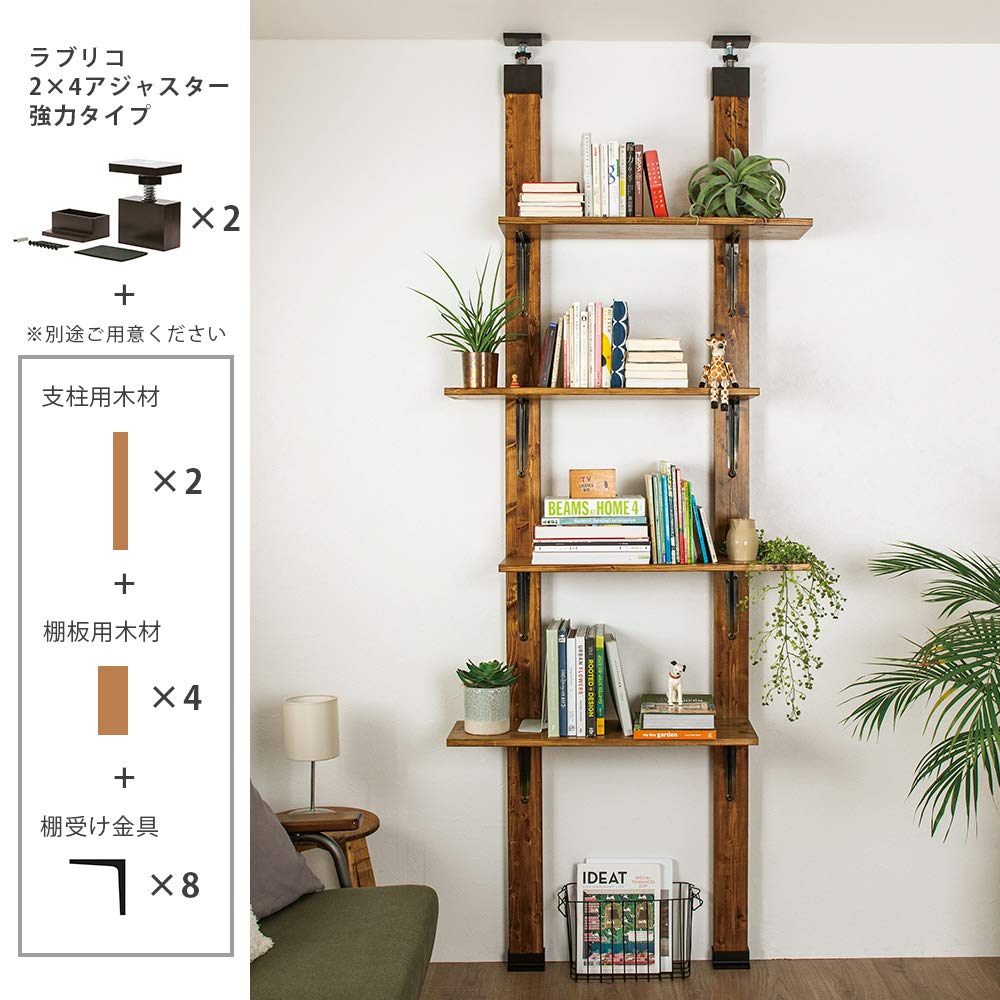

Compatible Wood: 2x4 wood. Installation Dimensions (Ceiling Height): Up to 2750 mm. Wood Cutting Guide: Please prepare wood 120 mm shorter than the height of the installation location.

Materials: <Resin Parts> ABS resin, EVA resin, <Screws> Iron, plated, <Springs> Spring steel, plated, <Stapler> Stainless steel.

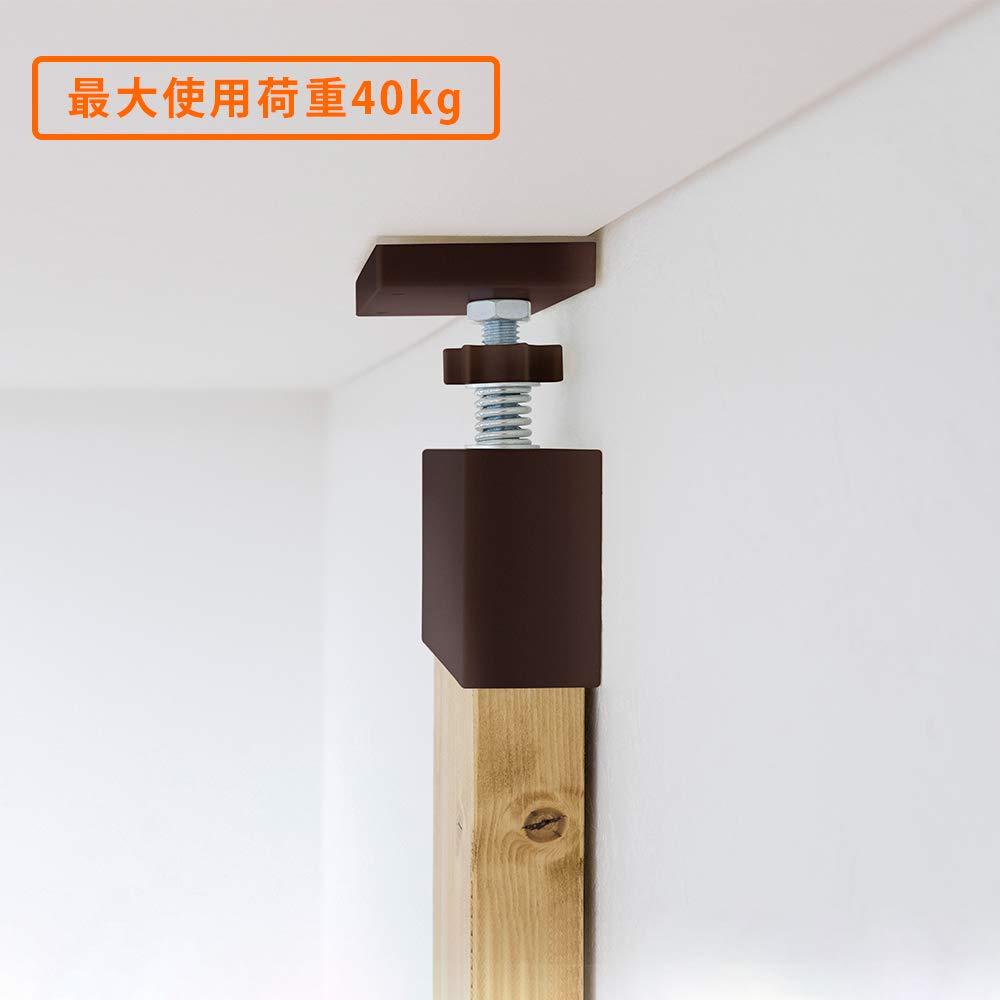

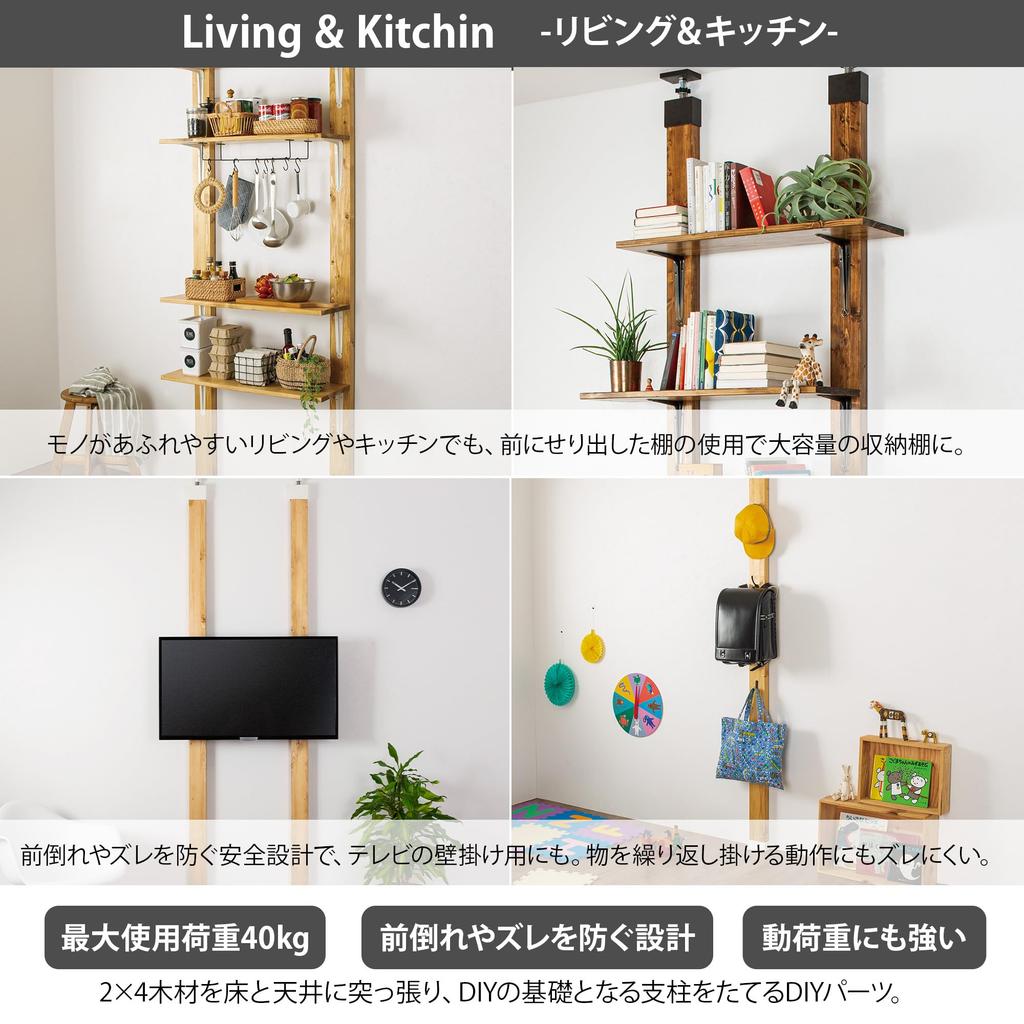

This DIY part braces 2x4 wood to the floor and ceiling, providing a foundation for various DIY projects. Thanks to the innovative shape of the parts, this 2x4 adjuster is resistant to dynamic loads. Its safety design prevents tipping forward or slipping, making it suitable for wall-mounting TVs and bicycles.
