[Product Infomation]
Brand : Audio Technica
Materials : metal, Plastic
[Product Description]

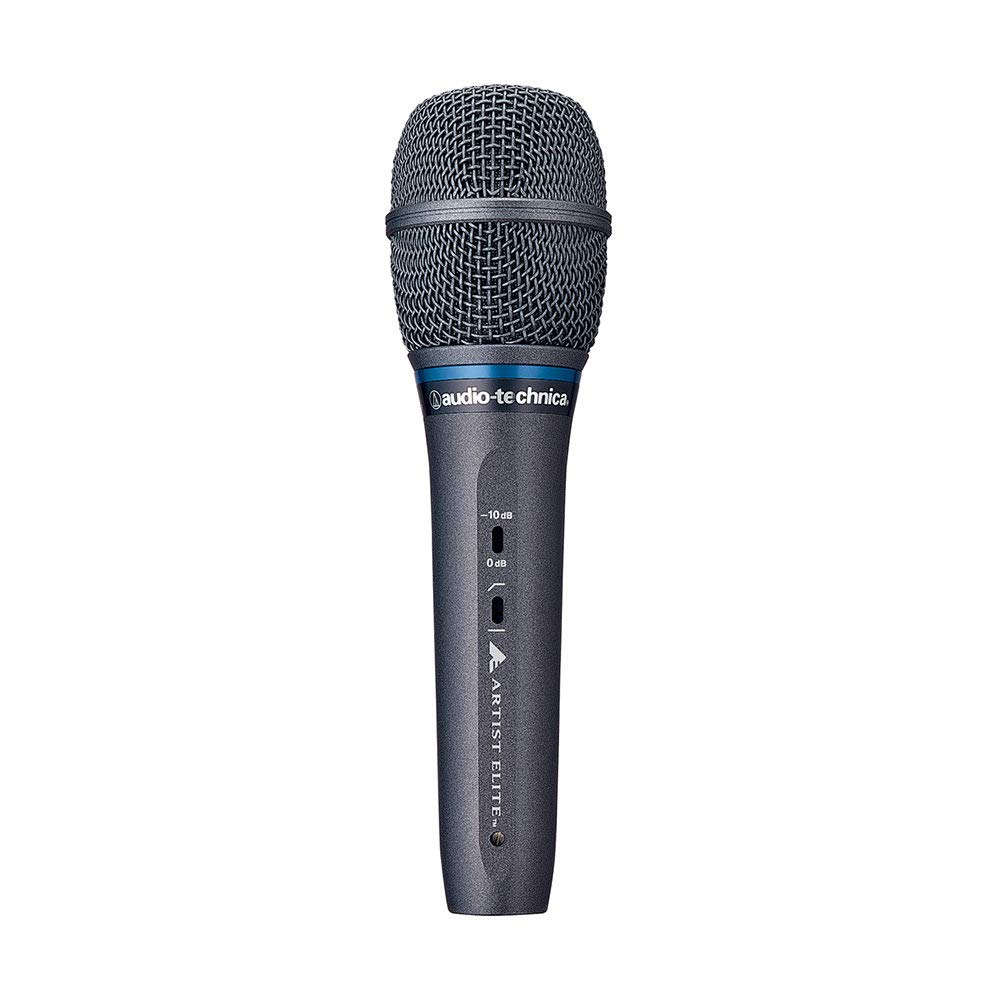

・Hand-type condenser microphone for vocals that is resistant to feedback.
・Unidirectionality that captures the sound in front of the microphone.
- Three-layer head case that suppresses pop noise.
・Excellent anti-shock technology.
- Sturdy design that can withstand harsh tours.
- Equipped with low cut switch and pad switch.
- Comes with a "Quiet Flex" microphone holder.
●Hand-type condenser microphone for vocals that is resistant to feedback.
Equipped with the same unit as the studio condenser microphone AT4033a, which was a big hit all over the world. It has a flat frequency response and excellent response performance, achieving smooth and natural acoustic characteristics. Achieves subtle vocal expression.
In addition, even the smallest parts are coated with a special coating to ensure perfect humidity protection.
●Unidirectionality that captures the sound in front of the microphone.
Unidirectional characteristics that increases the sensitivity of the front of the microphone and eliminates sound from the back. By suppressing the wraparound that causes howling, it achieves both the high sound quality of a condenser microphone and high feedback resistance.
●3-layer head case that suppresses pop noise.
Adopts a 3-layer head case with a hardened steel outer grille, fine steel mesh, and open cell foam. It shuts out harsh pop noises and annoying consonants without degrading high-frequency characteristics.
●Excellent anti-shock technology.
The proven anti-shock technology suppresses handling noise and delivers overwhelmingly pure sound.
●Sturdy design that can withstand harsh tours.
Adopts a durable die-cast body. It's designed to withstand tours where it's often handled roughly.
●Equipped with low cut switch and pad switch.
Equipped with a low-cut switch to cut background noise and a 10dB pad switch to adjust sensitivity.
●Includes a microphone holder made by Quiet Flex.
A microphone holder made of highly flexible rubber material "Quiet Flex" is included.
●Technical data
Model: Back electret condenser type
Directional characteristics: unidirectional
Frequency characteristics: 30~18,000Hz
Sensitivity (0dB=1V/1Pa 1kHz): -42dB
Maximum input sound level (1kHz at 1%T.H.D.): 147dB
SN ratio (1KHz at 1Pa): 75dB
Noise: 19dBSPL
Dynamic range (1kHz at Max SPL): 128dB
Output impedance: 150Ω
Power supply: 11~52VDC
Current consumption: 3mA
Low cut: 80Hz, 12dB/oct
Input ATT: 10dB
Mass: 300g
●Accessories
Microphone clamper AT8470, pouch, conversion screw (3/8-5/8)
*The conversion screw (3/8-5/8) is already attached to the microphone clamper AT8470.
[Important Note - For Overseas Customers]
Thank you for purchasing this product. Please read the following important notes carefully before using this product overseas.
1. Legislation and safety standards
This product complies with Japanese safety standards. Please check compatibility with local regulations and safety standards before use in your country.
Certain product categories (electronics, cosmetics, food, etc.) may require certification from the importing country.
2. About electrical products
[Voltage compatible]
When using electrical appliances, please note that they are designed according to Japanese voltage specifications (90-110V), so using them at a different voltage may cause malfunctions.
[Plug type]
Our products use the Japanese plug type (A type or B type).
Please use a conversion adapter if necessary.
[Important notes regarding transformers and adapters]
A transformer adjusts the voltage to suit the requirements of the equipment.
Conversion adapters only change the shape of the plug and do not adjust the voltage.
Using only the conversion adapter without a transformer may damage the product.
[About responsibility]
We are not responsible for any failure or damage caused by improper usage, such as operating the product without a transformer.
3. Language and manual
Product instructions and displays may only be in Japanese.
The English version of the manual can be downloaded from our website.
