【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
----------------------------------------------------------------------
[UPGRADE TO MAGNETIC SWITCH] Following the success of AJAZZ AK820 Pro, AJAZZ has adopted a factory lubricated magnetic switch. Released the upgraded version, AK820 Max HE. Unlike traditional mechanical switches, this magnetic switch is equipped with a quick trigger function, allowing for ultra-fast response. Users can immediately activate keys with a single key press without having to wait for a full reset. Supports multiple key switching modes, including DKS (Dynamic Key Switching), MT (Magnetic Touch), and TGL (Trigger Lock), making the keyboard more versatile
【Adjustable Activation Point】AK820 Max allows you to customize the activation point of each key from 0.1mm to 4mm with 0.1mm precision. Equipped with adjustable activation points. This customization feature provides a gaming and typing experience suitable for users of all styles
[Rapid Trigger (RT)] This feature dynamically adjusts the activation and release points of a key depending on the distance it is pressed. The RT is adjustable from 0.1mm to 4mm for the wired version and from 0.2mm to 2.5mm for the 3-mode version. This feature is especially beneficial in games where fast keystrokes are especially important. The keyboard responds faster than typical mechanical switches, allowing you to quickly enter commands and instantly repeat keystrokes during intense gameplay.

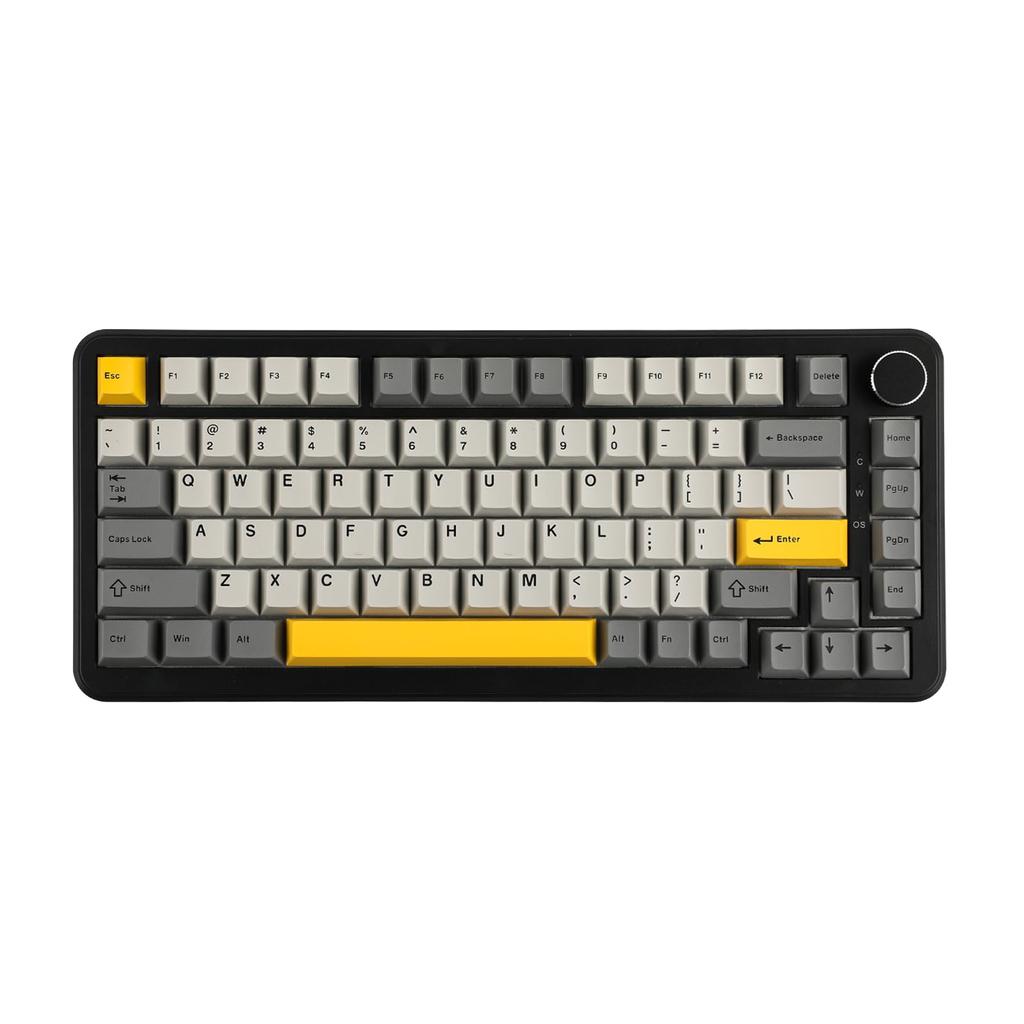

【Superior Manufacturing Quality】AK820 Max HE features a 75% layout with customizable volume control multi-function knob with AJAZZ driver. The tri-mode version adds a 0.85-inch TFT screen that displays time, remaining power, connectivity, and GIFs. The internal structure adopts a gasket design, providing stability and solid typing feedback to ensure accurate triggering during play. 3 layers of sound-enhancing materials (Poron foam, EVA foam, silicone case pad) improve your typing experience and take full advantage of the performance of magnetic switches
【High Polling Rate and Connection Options】8000Hz wired version: Provides ultra-low latency 8000Hz polling rate for demanding gamers. 1000Hz tri-mode version: Features a 0.85-inch color screen, 1000Hz polling rate, and three connectivity options: wired, Bluetooth, and 2.4GHz wireless.
【Hot-Swappable Magnetic Switch】Hot-swappable PCB allows users to switch between different magnetic switches such as Kailh and Gateron, allowing users to customize the keyboard according to their personal preferences
Dynamic Keystroke (DKS): With the dynamic keystroke feature, each key can perform up to four actions depending on the depth of the keystroke. For example, a light press performs one action, and a further key press performs another action. This feature supports complex command sequences in gaming and productivity applications, allowing you to program up to four different actions for each keystroke, improving game dynamics and control.
[Mod-Tap (MT)] The Mod-Tap function optimizes the usability of the key by assigning two functions depending on its purpose. Perform one function with a quick tap and activate another with a hold. This feature is especially useful in gaming and programming environments where key space is limited, improving efficiency and reaction time.
[Toggle Key (TGL)] The toggle key function allows any key to have two operating modes: standard keystroke and continuous keystroke. A quick tap initiates a repeating keystroke, which is useful in gaming scenarios that require repeated input. Press and hold the key to return to normal operation. This flexibility allows the keyboard to seamlessly adapt to different situations in-game, giving you a strategic advantage.
specs
Brand: AJAZZ
Model: AK820 Max HE
Connectivity: Wired only/Tri-mode (wired/Bluetooth/2.4GHz wireless)
: None (wired version) / 4000mAh (tri-mode version)
Polling rate: 8000Hz (wired version) / 1000Hz (try mode version)
Display screen: None (wired version) / 0.85 inch TFT color screen (try mode version)
Case material: plastic
Plate material: PC
Stabilizer: plate mount
Keycap: Cherry profile PBT
Backlight: South facing RGB LED
Anti-Ghost: NKRO
Hot-swappable: Yes (magnetic switch only)
Weight: 860g (wired version) / 920g (tri-mode version)
Dimensions: 333 x 143 x 20.5 mm
