Product Name

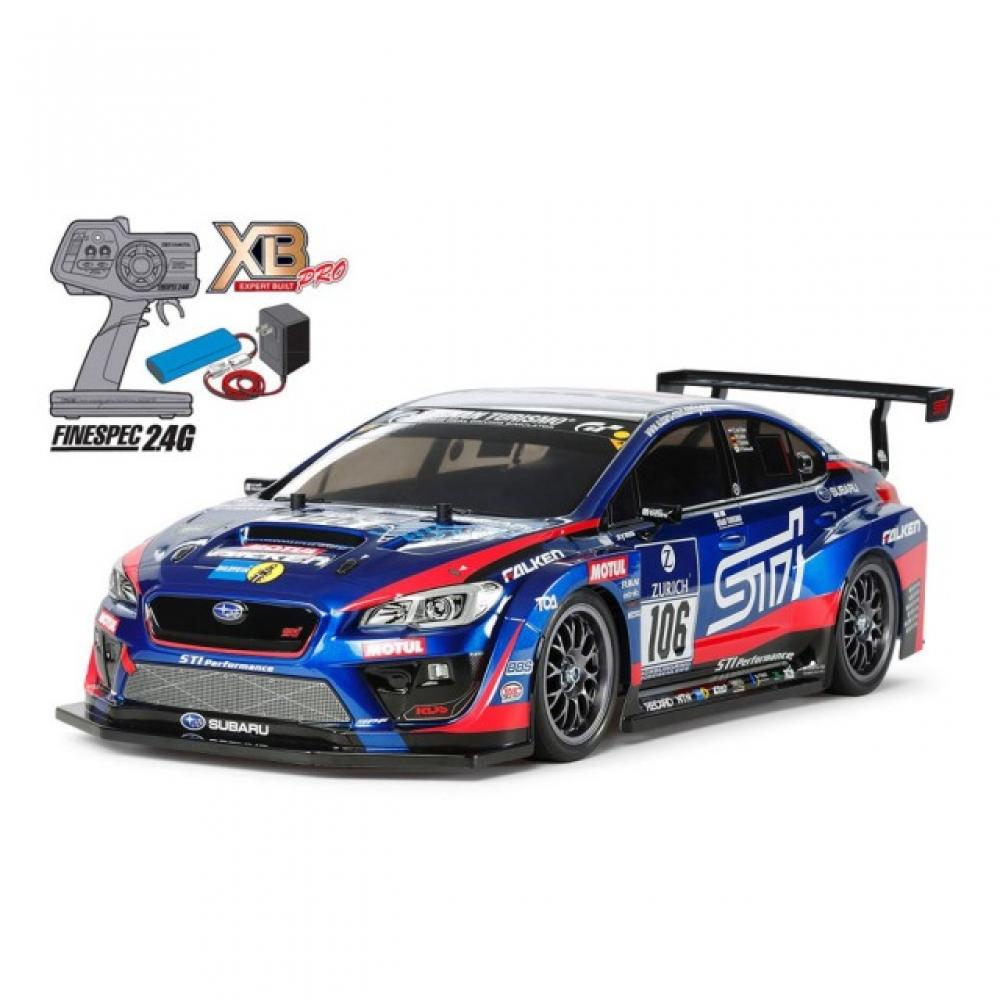

Tamiya 1/10RC XB SUBARU WRX STI NBR Challenge (TT-02 Chassis)
Brand Introduction
Tamiya is a renowned model manufacturer from Japan, known for its diverse range of products including RC cars, plastic models, and electric toys sold worldwide.
Product Description
【A contender from Japan that triumphed in harsh endurance races】, the Nürburgring in Germany is used as a development course for sports cars. Since 2008, SUBARU has competed in the 24-hour endurance race held here and has won the class championship four times. The WRX STI NBR Challenge, based on SUBARU's high-performance sports sedan WRX STI, is a replica of the machine that won the class championship in 2016, constructed as a fully electric radio-controlled car. It realistically reproduces complex shapes such as the front bumper spoiler, hood with air vents on both sides of the air intake, sharp front and rear fenders, and diffuser-shaped rear end in polycarbonate. The metallic blue paint and numerous sponsor logo stickers are also included.
Usage Instructions
The pre-assembled chassis is designed for excellent balance with the left-mounted battery and right-mounted motor, featuring a shaft-driven 4WD TT-02 that excels in driving stability. The model is operated using a 2.4GHz proportional transmitter, allowing easy play with multiple units.
Specifications
● Length: 497mm
● Width: 189mm
● Height: 135mm
● Wheelbase: 257mm
● Tire Width/Diameter: Both Front and Rear 27/67mm
● Frame Type: Bathtub
● Drive Type: Vertical motor, shaft drive full-time 4WD
● Differential Gear: Plastic 4 bevel type for front and rear
● Steering: 3-part tie rod type
● Suspension: 4 Wheel Double Wishbone
● Damper: Friction type for both front and rear
● Gear Ratio: Kit standard 8.27:1 (with optional pinion combinations available from 11.38:1 to 7.28:1)
● Motor: Type 540
● Speed Controller: Equipped with ESC (Electronic Speed Controller)
Precautions
● 4 AA batteries for the transmitter are required separately.
● The product may differ in details from the description provided.
To request a return or exchange, please note that it is mandatory to provide a video of the unpacking of the package.
