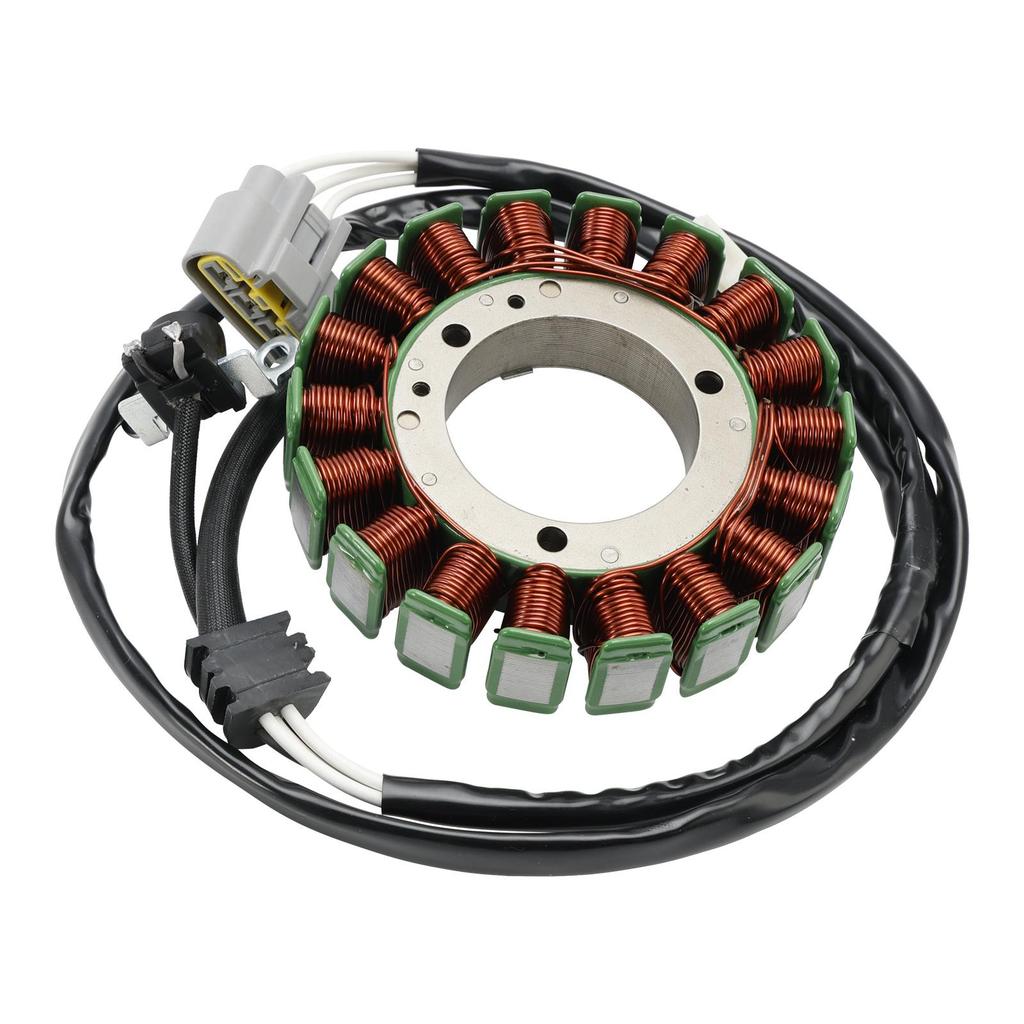

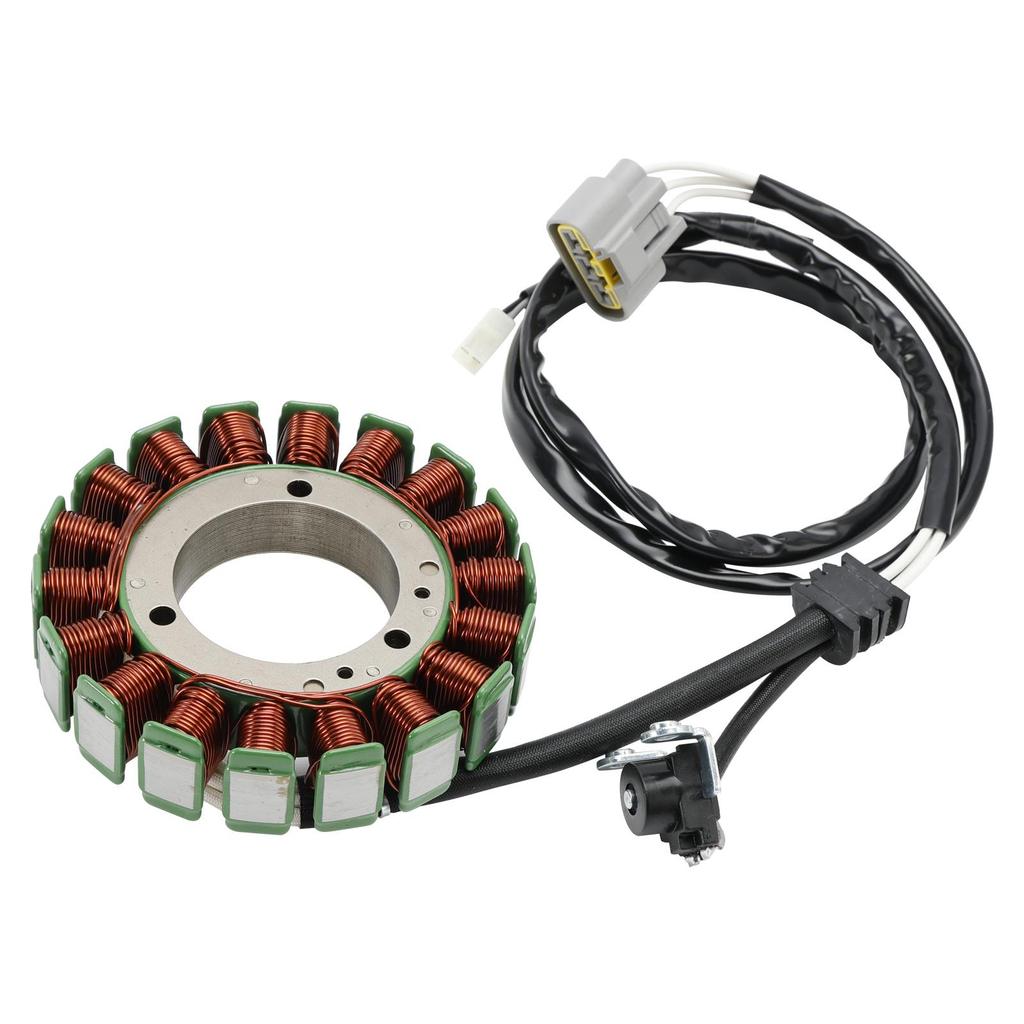

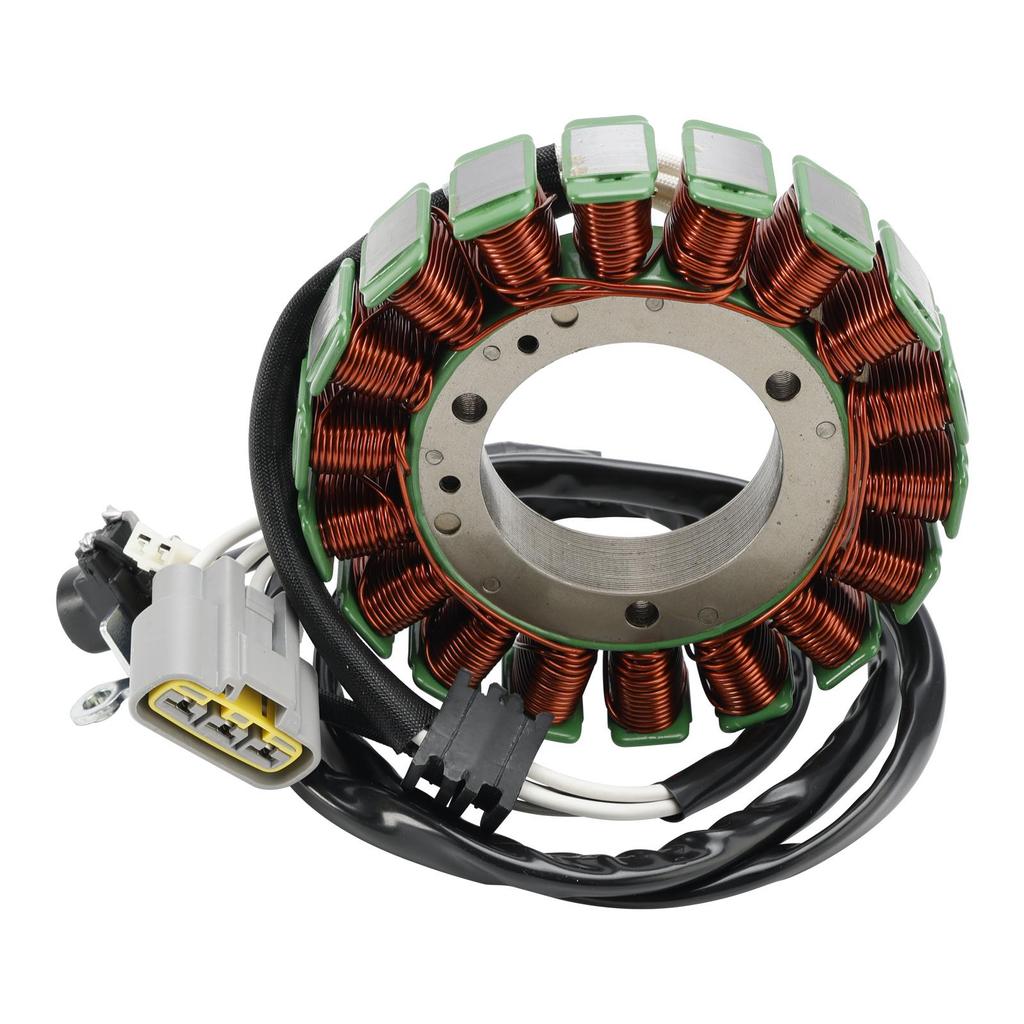

Magneto Generator Stator Fit for Yamaha XVS 950 V-Star / Bolt / R-Spec 2009-2024
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil
other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 2 + 3
Number of poles: 18
Dimensions:
Exterior diameter: 130mm
Interior diameter: 58mm
Replacement Part Number:
5S7-81410-00
1TP-81410-00
Fits Make/Model/Year:
5S7-81410-00
Fit for Yamaha XVS950A Midnight Star 950 2009-2015
Fit for Yamaha XVS950A V-Star 950 2009-2016
Fit for Yamaha XVS950 V-Star Tourer 2009-2017
1TP-81410-00
Fit for Yamaha XVS950 Bolt 2014-2020
Fit for Yamaha XVS950 XV950 R-Spec 2014/2016-2017
Fit for Yamaha XVS950 XV950 Racer 2015-2016
Fit for Yamaha XVS950 XV950 ABS 2014/2016
Fit for Yamaha XVS950 Bolt C-Spec 2015-2016
Fit for Yamaha XVS950 Bolt R-Spec 2014-2024
Fit for Yamaha XVS950 SR950 SCR950 2017
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1x Stator Generator
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
